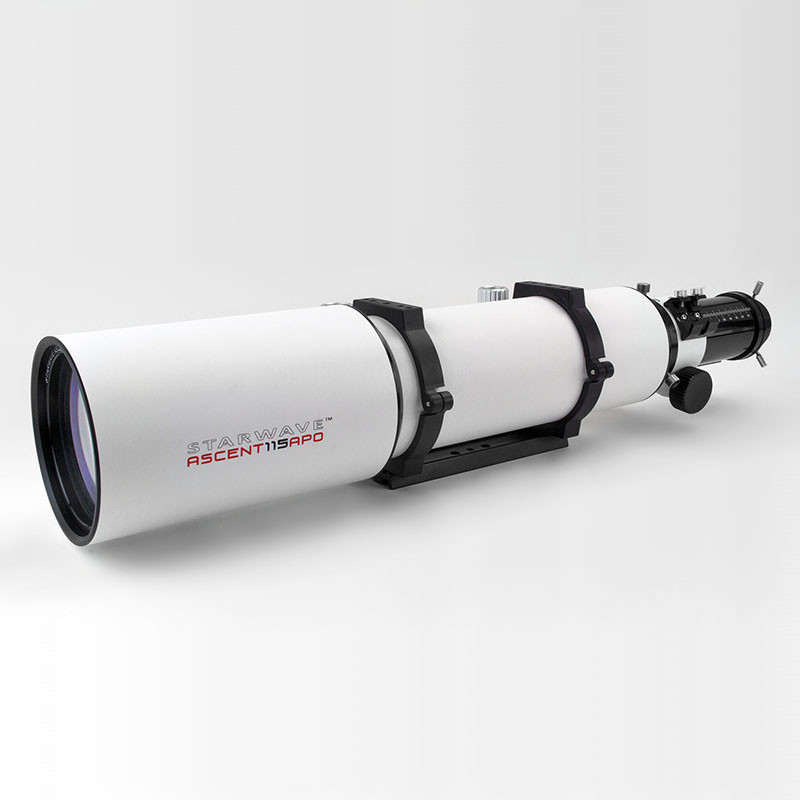

Altair 115 F7 ED Triplet Starwave ASCENT Apo Refractor

Product Description

The Starwave ASCENT 115mm F7 EDT APO FPL51 ED and Lanthanum glass refractor brings you triplet ED level colour correction, and is a very capable, multipurpose imaging and visual platform. It offers more light grasp and resolution than a 4" refractor with similar portability. The air spaced triplet optic has Japanese ED and Lanthanum-doped elements, in a collimatable, temperature compensated lens providing exceptional performance.

A high quality Rack and Pinion geared focuser with tri-clamp and 2" to 1.25" adaptor and screws for guide-scope mounting are standard. For high or low power visual observation, the Starwave 115 will give the high contrast views only a refractor can, boasting ED optics with an air spaced triplet design for superb corrections, for a very pleasing experience with high power, or low power wide field eyepieces.

Versatility

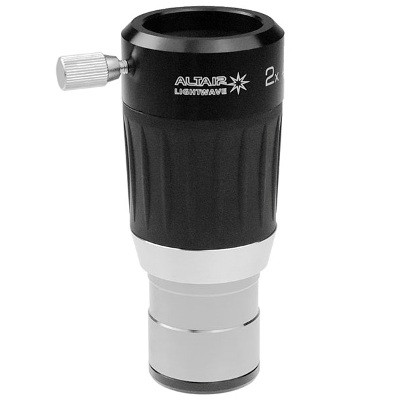

The ASCENT 115 is imaging-ready - a great match for deep-sky imaging with your Altair Hypercam. For lunar and planetary imaging, a 2x Barlow lens and GPCAM will show a wealth of detail.

The addition of an Altair Solar Wedge or Baader Solar film filter allows high resolution imaging or visual observation of the surface of our nearest star.

Mounting choices
At just 7kg and being F7 the tube is compact allowing a vast choice of mount options, for imaging the EQM35 and above are recommended, for grab and go visual use the SkyTee II is a good choice.

What magnification will eyepieces produce?
The following common eyepiece focal lengths will give the following magnifications with the Starwave 115 ED Triplet refractor:
Eyepiece: Power:
31mm 26x
24mm 33x
19mm 42x
15mm 53x
11mm 73x
9mm 89x
4mm 200x

Starwave 115mm ED Triplet specification:
Air spaced ED triplet APO lens with Japanese ED and Lanthanum-doped elements, in collimatable, temperature compensated lens cell.
Aperture/Focal Ratio/Focal Length - 115mm / F7 / 805mm
Resolution - 1.01 arc seconds
Limiting Visual Magnitude - 11.1
Highest Useful Magnification - 230x (atmospheric conditions permitting)
Fully multi coated on all 6x optical surfaces for high transmission
Aluminium with durable white matte powder coat (tougher than paint).
Retractable dew shield
2.5" Dual speed Rack 'n Pinion focuser
1:10 ratio micro focuser knob
2" to 1.25" Self-Centering Adaptor
Optional 8.6x 50mm finder scope with illuminated reticule
CNC machined tube rings compatible with Altair M6 30mm hole spacing.
Vixen format dovetail plate
2" adaptor with brass compression ring and 3x clamping screws
Scope Weight - approx.7kg including tube rings, without accessories
Scope Length 70cm with dew-shield retracted, 89cm with dew-shield extended


We have published an article explaining the merits of ED refractors, read about The ED Refractor Telescope.
