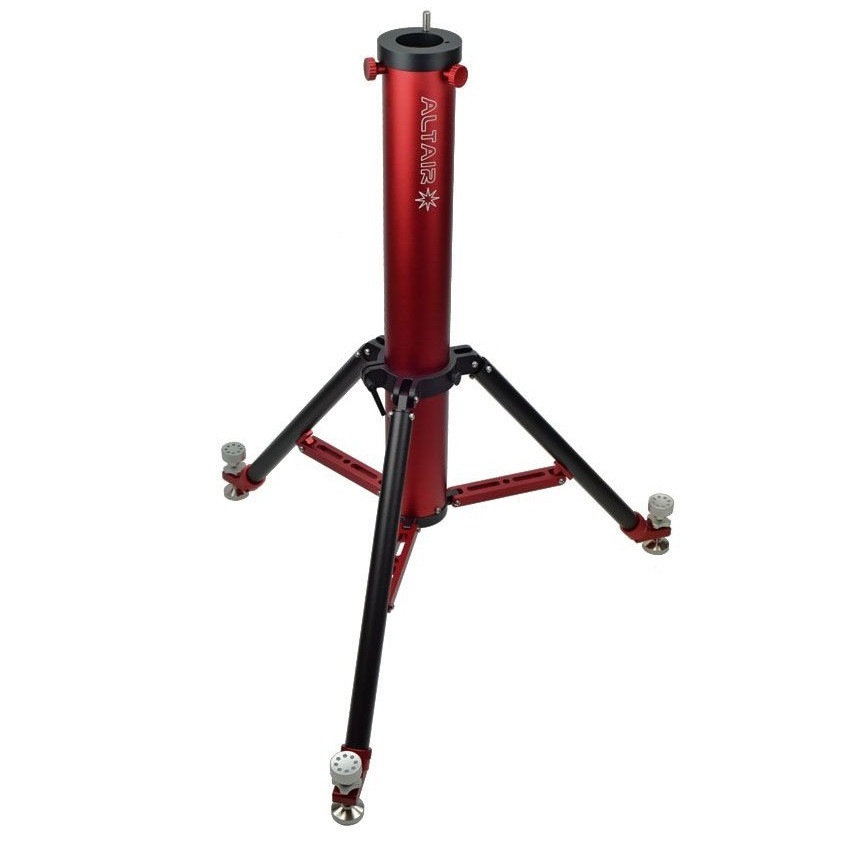

Altair Tri Pier Red

Product Description

The Altair Tri-Pier red is a compact portable pier for imaging on the go. The pier comes with a quickly removable top adaptor with a stainless steel Azimuth stop-post and is compatible with many mounts (see list below),

The top mount adaptor can be kept on the mount for quicker setup, and stowed in a padded mount carry bag. Simply loosen the 3 knobs, rotate and lift to remove or replace it.

The adjustable pier feet terminate in stainless steel conical pads, with ball swivel joint to ensure even surface contact. The pier feet fold inwards for compactness, and when the locking ring is loosened, rotate outwards and lock in position for quick setup.

Mount Compatability
EQ3
EQ5
AZ4
EQM35
HEQ5
AZEQ5GT
VIXEN GP
OVL SKYTEE 2
ALTAIR SABRE

A custom padded transport bag is included.

Folded 0.90m length (900mm).
Height when opened 1 metre (1000mm) .
Weight 8.9kgs.
Legs can be adjusted +- 50mm (5cm) for levelling, and locked into position.
Materials T6061 aluminium for strength and lightness.
Nylon Padded carry bag included.
Additional pier top adaptors are in development, for various mounts.
