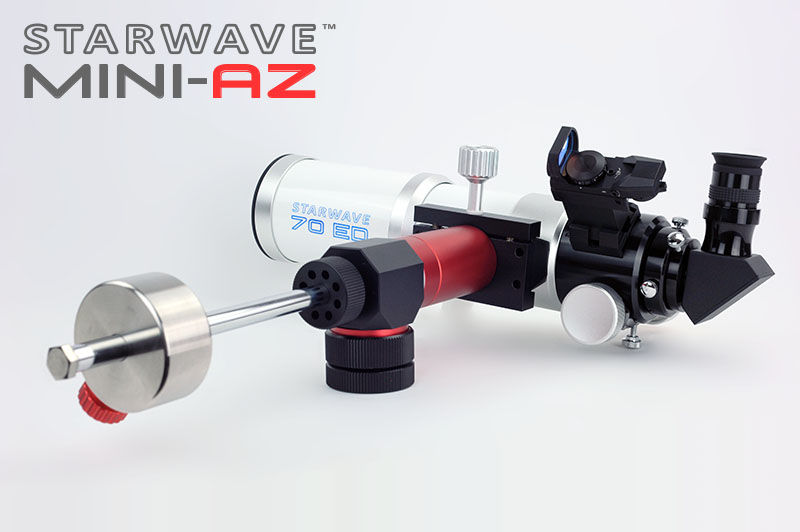

Altair Starwave 70ED Refractor & Mini-AZ Mount COMBO Package

Further details

In the box - Starwave Mini-AZ mount kit:
Mount head.
Vixen-format clamp.
1kg Stainless Steel Counterweight & shaft.
80mm side arm extension.

About the Starwave 70ED refractor kit:
Featuring ED optics, the travel-friendly Starwave 70mm F6 ED Doublet refractor can be taken anywhere.
The optical tube folds down to just under 30cm length with the dewshield retracted, and weighs about 2kg.
The Starwave 70ED is capable of both visual observation and wide-field imaging in a single telescope.
The included accessories are high quality items, designed to do the Starwae 70 ED optics justice.

In the box - Starwave 70ED Refractor kit:
Starwave 70mm F6 ED Doublet optical tube with 2" Dual Speed Crayford focuser.
Multi reticule variable brightness RDF finder with metal body and quick release mounting stalk.
1.25" Dielectric Diagonal 99% reflective.
Quality wide field 17mm Eyepiece with 65° APOV, 16mm Eye Relief, 1.25" barrel and dust caps giving 25x magnification.
Case with strap, padded foam inserts, and space for accessories.
2"-1.25" Push-Fit Adapter.
Front and rear dust caps.

About the Starwave Mini-AZ Mount kit:
Quick to set up and intiutive to use with easy tension controls on both axes.
Perfect for visual astronomy with a small refractor. No power needed, no polar aligment needed (like for Equatorial Mounts), just point and go!
Fits any camera tripod with standard 3/8 thread (if 1/4, just use a 3/8 to 1/4 converter)
Has optional extension arm, stainless steel counterweight, and counterweight shaft.
Packs down tiny for travel.
Optional L-Bracket for Photo lens or spotting scopes with 1/4" thread fitting.
Designed for compact refractors like the Starwave 70ED and 80ED, spotters or even a camera and large telephoto lens.
Vixen format clamp - spring loaded with captive clamp.
80mm removable side-arm-extension to allow longer optical tubes to clear the tripod legs.


Starwave Mini-AZ Mount Specifications:
Total weight 1.5kg (Head, extension arm & clamp)
Stainless Steel Counterweight 1kg
Counterweight shaft 20cm
Head height 95mm
Head width 100mm
Head depth 55mm
Extension arm length 80mm.
Distance of Vixen-Style clamp from centre pivot-point with extension in place = 155mm
Distance of Vixen-Style clamp from centre pivot-point without extension = 60mm

Please note: The case is sold as "packaging only" and is provided with this telescope to protect it during shipping. The product guarantee does not extend to damage of the case during shipping, nor failure of the case, catches, zips, foam, or other fittings, and you are not being charged for the case when buying a telescope. If the case has absorbed damage, it is considered to have fulfilled it's function to protect the contents (which are of course guaranteed to arrive undamaged).

Delivery charge £5.95
