Home Accessories Microscopes Bresser Microscopes Bresser Science ADL-601F 40-1000x Microscope

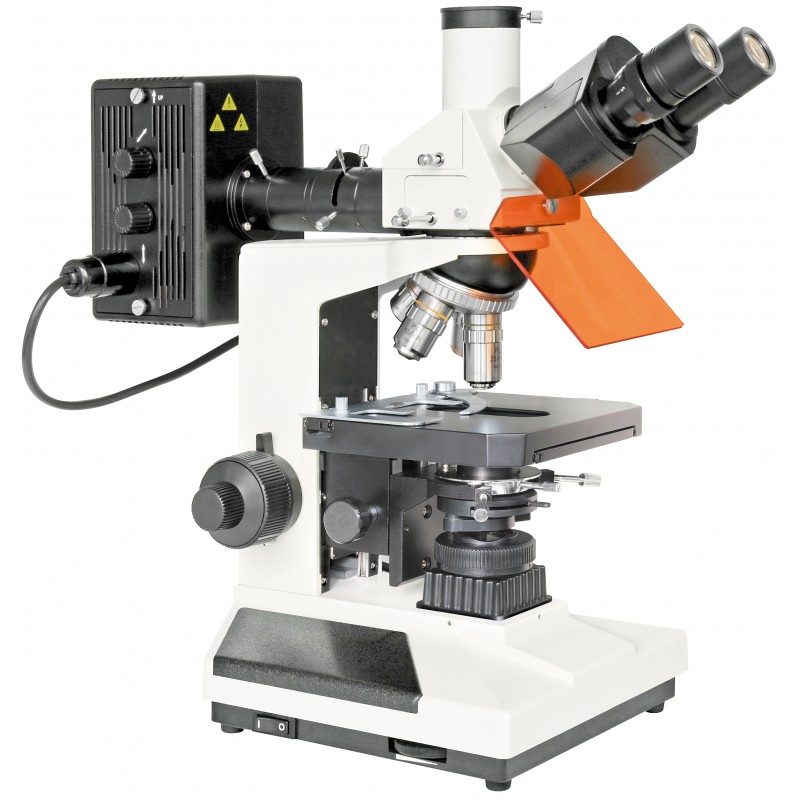

The Bresser Science ADL 601F 40-1000x microscope is an instrument which represents excellent value for money. In the microscope's base, there is a halogen illuminator (20 W) for transmitted light as well as the power supply and the continuous adjustable dimmers for both reflected light and transmitted light. Both trinocular head attachments function with both illumination modes. They have also the capacity for photography and binocular visual observation. The inclination of the eyepiece tubes is 30°. The fluorescence attachment includes a high pressure mercury lamp (100 W) with external power supply, a filter wheel and a radiation shield. The mercury lamp produces the exciting radiation (namely ultraviolet radiation) in order to get fluorescence. Acessories, which are necessary to be chosen, are excitation systems (with excitation filter, beam splitter and emission filter: green, blue, violet or ultraviolet) and fluorescence objectives (optional: 25x retractable, 40x-glycerine retractable, 100x-glycerine retractable). Fluorescence microscopy is done e.g. in biology, medicine, microchemistry, geology, semiconductor production and environmental protection. It has also the other features, which are typical for high-quality microscopes: fourfold objective nosepiece, lengthwise and cross moveable stage, coaxial focusing knobs (concerning fine drive: 200 µm / full turn), adjustment of eye relief, diopter adjustment and the phototube. DeliveryDelivery time is normally around five business days with this productOptional available, general accessories are the wide field eyepieces (WF10x, WF16x), the dividing eyepiece (WF10x), different planachromatic DIN objectives (e.g. 4x, 5x, 10x, 20x, 40x retractable, 100x-oil retractable), the Abbe condenser (numerical aperture 1,25; with iris diaphragm and auxiliary lens), dark field condensers (dry and oil), immersion oil, the phase contrast set, a field diaphragm (in order to obtain Köhler illumination) and filters (blue, green, yellow, ground glass, polarization). Application range: Biology, Gemology, Botany, Education, Teaching, Entomology, Forensic, Research, Laboratory, Medical science, Pathology, Veterinary medicineSpecificationType: Biological MicroscopeView: BinocularIllumination: Halogen Level: Intermediate, ExpertWarranty: 2 years1.25 Abbe-condenser with iris diaphragm and filter holderIncluded. adjustable mechanical stage Integral. dimmerAdjustable eye reliefDiopter adjustment Comfortable binocular view, 30° inclinedTransmitted 6V/20W, adjustable Magnifications: 40x-600x (incident light), 40x-1000x (transmitted light)Eyepieces: 2x WF10xEyepiece diameter: 23.2 mmObjectives: PL-4x, PLL-10x, PLL-40x, PLL-60x, PL-100x (oil immersion) Contents5 DIN-objectives 2x 10x eyepieces 1.25 Abbe-condenser with iris diaphragm and filter holderFluorescence attachment with high pressure mercury lampImmersion oilPower supply: 220/240V Field diaphragm (for Koehler illumination)
