Home Mounts & Tripods Equatorial Mounts Celestron Advanced VX Mount and Tripod

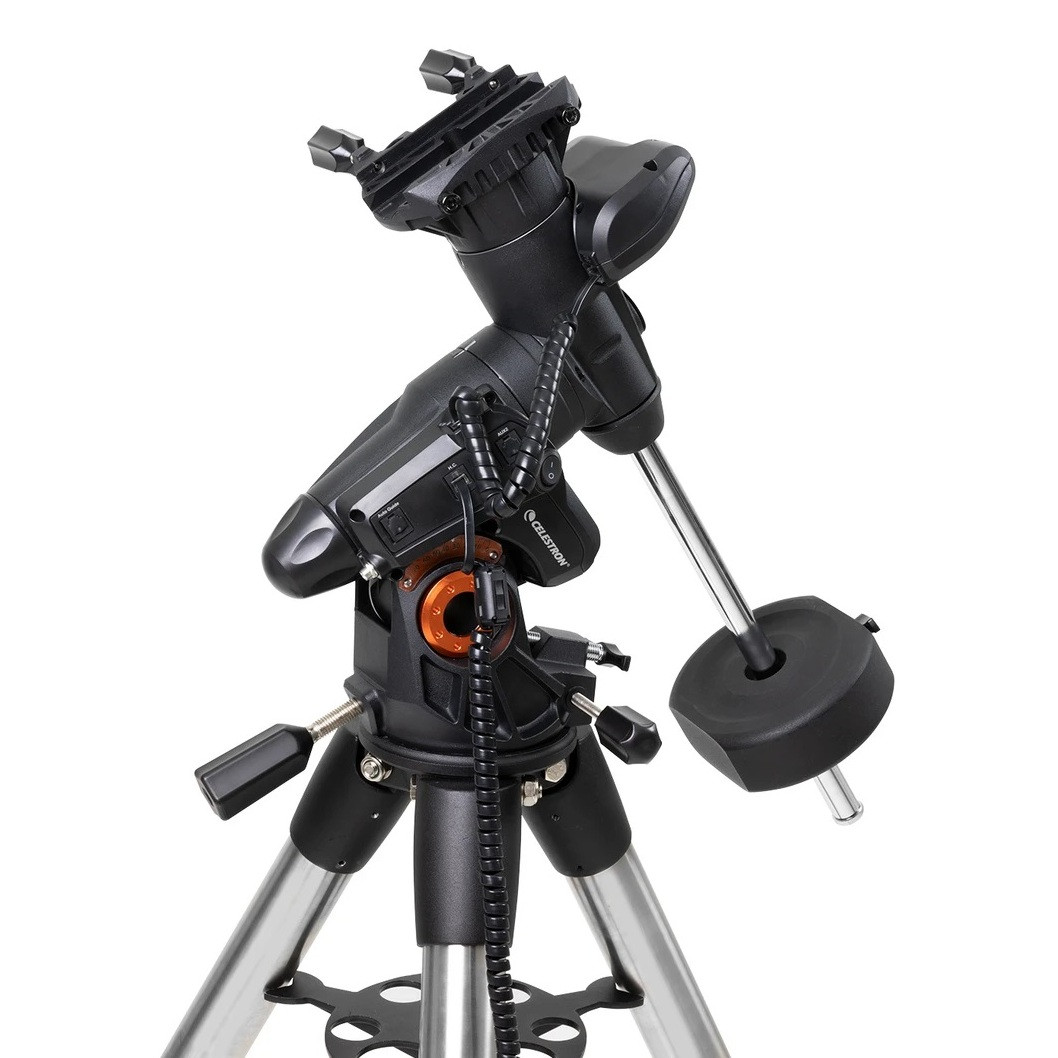

The Celestron Advanced VX mount and tripod sets a new standard in mid sized equatorial goto mounts and holds a maximum instrument capacity of 30 lb.The most compact and portable of Celestron’s German equatorial mounts offers the same rigidity as our larger mounts with minimal flexure and an improved industrial design. The Advanced VX provides you with many of the features found on Celestron’s most sophisticated German equatorial mounts, at an extremely affordable price. As you grow in your hobby, you can continue to enjoy all the high-level features of the Advanced VX computerised goto system that allows you to explore thousands of objects via the onboard database.Dual saddle plate is compatible with narrow CG-5 dovetails and wider CGE dovetail. Also compatible with Vixen format dovetails longer than 100mm, but not compatible with Losmandy D format plates.Mount Type: Computerized EquatorialInstrument load capacity: 30 lbs (13.6 kg)Height adjustment range (includes mount and tripod): 1118mm - 1626mm Tripod Leg Diameter: 50.8mm (2") Stainless SteelLatitude adjustment range: 7° - 77°Mount Head Weight: 17 lbs (7.71 kg)Accessory Tray: YesTripod Weight: 18 lbs (8.16 kg)Weight of Counterweights: 1 x 12 lbsSlew Speeds: 9 slew speeds - max speed 4°/secondTracking Rates: Sidereal, Solar and LunarTracking Modes: EQ North and EQ SouthGPS: N/ADovetail Compatibility: Dual saddle plates (CG-5 and CGE saddle)Number of Auxiliary Ports: 3 AUX Ports (1 hand control and 2 AUX Ports for optional accessories)Autoguide Port: YesUSB Port: Yes, input on Hand ControlPower Requirements: 12V DC 3.5A (tip positive)Motor Drive: DC servo motorsAlignment Procedures: 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick AlignPeriodic Error Correction: YesComputerized Hand Control: NexStar+ hand control with LCD display, 19 fiber-optic backlit LED buttonsNexStar+ Database: 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objectsSoftware: Celestron Starry Night Special Edition Software | SkyPortal AppTotal Kit Weight: 47 lbs (21.31 kg)Included Items: Advanced VX Equatorial Head | Tripod | Accessory Tray | 1 x 12 lbs counterweight | NexStar+ Hand Control | DC Power Cable (plugs into cigarette lighter socket)
The Advanced VX mount was specifically designed to provide optimum imaging performance for small to medium size telescopes. Now your telescope can take advantage of All-Star Polar Alignment and autoguider support. You’ll be able to track through long exposures using permanently programmable periodic error correction. Image across the meridian without doing a meridian flip, so you can seamlessly image the best part of night sky. Advanced VX features significantly larger base castings than our previous design, improving stability under heavier loads. Improved motors offer more torque and can handle slight load imbalances with ease.Dual saddle plate is compatible with narrow CG-5 dovetails and wider CGE dovetail. Also compatible with Vixen format dovetails longer than 100mm, but not compatible with Losmandy D format plates.Experienced imagers will love taking this portable mount to a dark sky site, with all the performance of their larger observatory mount. Or, if you’re new to imaging, this mount will help you get started with the hobby and keep up with your needs for years to come.Mount Type: Computerized EquatorialInstrument load capacity: 30 lbs (13.6 kg)Height adjustment range (includes mount and tripod): 1118mm - 1626mm (44" – 64")Tripod Leg Diameter: 50.8mm (2") Stainless SteelLatitude adjustment range: 7° - 77°Mount Head Weight: 17 lbs (7.71 kg)Accessory Tray: YesTripod Weight: 18 lbs (8.16 kg)Weight of Counterweights: 1 x 12 lbsSlew Speeds: 9 slew speeds - max speed 4°/secondTracking Rates: Sidereal, Solar and LunarTracking Modes: EQ North and EQ SouthGPS: N/ADovetail Compatibility: Dual saddle plates (CG-5 and CGE saddle)Number of Auxiliary Ports: 3 AUX Ports (1 hand control and 2 AUX Ports for optional accessories)Autoguide Port: YesUSB Port: Yes, input on Hand ControlPower Requirements: 12V DC 3.5A (tip positive)Motor Drive: DC servo motorsAlignment Procedures: 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick AlignPeriodic Error Correction: YesComputerized Hand Control: NexStar+ hand control with LCD display, 19 fiber-optic backlit LED buttonsNexStar+ Database: 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objectsSoftware: Celestron Starry Night Special Edition Software | SkyPortal AppTotal Kit Weight: 47 lbs (21.31 kg)Included Items: Advanced VX Equatorial Head | Tripod | Accessory Tray | 1 x 12 lbs counterweight | NexStar+ Hand Control | DC Power Cable (plugs into cigarette lighter socket)
Service and delivery was excellent as always I absolutely love my mount and I’m know I’m gonna have plenty spacetastic nights talking pictures of our mysterious galaxy so thanks guys again. Xxx (04/06/2023) Marc - Paignton
Sturdy, well made, and feature rich The mount hasn't had first light yet, but first impressions are good. It's sturdy, and will meet all my needs (observing and getting into astrophotography). Note that a power supply isn't included. Delivery was amazingly quick, and my request for advice yielded useful hints. Highly recommended. (12/05/2020) Dave - Fife
New mount for a bit of Astrophotography Bought this an upgrade to my existing Alt/Az mount with the intention of doing some astrophotography. Ordered Saturday evening and arrived Tuesday. Good communication and updates from Harrison telescopes. Tripod and mount all look sturdy and well built. Straight forward to put together and setup. (01/11/2019) Dave - Maidstone
