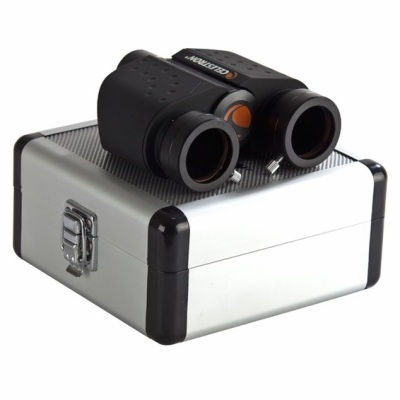

Celestron Binocular Viewer

Product Description

The Celestron Binocular Viewer enables you to enjoy celestial views with more contrast and improved detail using both eyes Our eyes work as a team, and our brains are wired to work with images that both eyes produce together. When we use just one eye to do observations through an optical device, the results are lacking somewhat in detail and contrast. A binoviewer uses two matching eyepieces to allow you to get the most out of your observations. Your eyes will relax, and you’ll find that you can observe for longer periods of time without suffering from eye fatigue.

The Celestron Binocular Viewer enables you to enjoy celestial views with more contrast and improved detail using both eyes, identical pairs of eyepieces are of course required.

The Celestron Binocular Viewer is well-made, with a rubberized coating to make it easy to grip, even with gloves on. The 22 mm BaK-4 fully multi-coated prisms provide increased light transmission with no vignetting or light cut-off. Each eyepiece holder can be individually focused, and diopter adjustment readings are well marked. The 1.25” insert barrel is threaded for filters, allowing you to use one filter instead of threading them on each individual eyepiece.

The Celestron Binocular Viewer weighs about 18 ounces and uses approximately 3.5 inches of back focus. This is sufficient for most catadioptric telescopes (Schmidt-Cassegrain, Maksutov-Cassegrain, etc.) as well as a good number of refractor-style telescopes. Newtonians and some spotting scopes have the least amount of back focus. Using a binoviewer on these designs may result in the inability to focus to infinity. Remember, binocular viewers require the use of two matched 1.25” eyepieces, which are sold separately.

The Binocular Viewer is designed to work with Schmidt-Cassegrain telescopes (SCT), Maksutov and many refracting telescopes. Not suitable for Newtonian reflectors.

Features high quality FMC BAK-4 prisms reduce light loss. Each unit is quality control inspected for collimation and performance.

The Stereo Binocular Viewer requires you use two 1.25" eyepieces of equal focal lengths and optical design.

Specifications:
Aperture 22 mm
IPD Max 75 mm (2.95 in)
IPD Min 54 mm (2.13 in)
Prisms BAK-4
Optical Coatings Fully Multi-Coated
Weight (oz) 18 oz (510 g)
Product Dimensions 4.75" x 4.75" x 1.75"
Storage Case Weight (oz) 11.6 oz (329 g)
Storage Case Dimensions 6" x 6" x 2.75"
