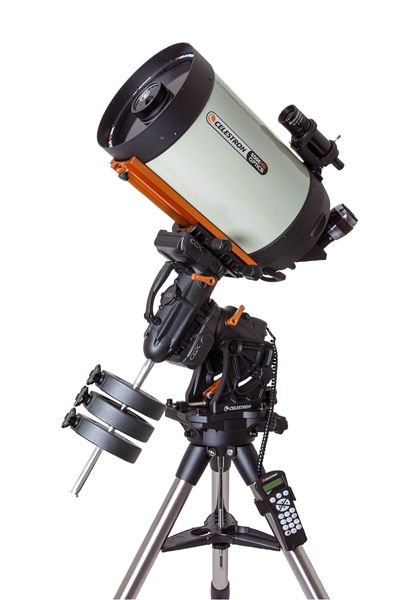

Celestron CGX Equatorial 1100 HD Telescope

Further details

See the Universe in HD
EdgeHD is an aplanatic, flat field Schmidt-Cassegrain telescope that produces aberration-free images across a wide visual and photographic field of view. The optical system was designed to reduce more than just off-axis star coma; it also provides an astrograph-quality flat focal plane all the way to the edge of the field of view.

True Astrograph Quality
Many optical designs that advertise themselves as "astrographs" actually only produce pinpoint stars across a curved focal plane. While this may be acceptable for some visual observing, stars will appear out of focus at the edge when used with the flat chip sensor of a digital camera. EdgeHD optics produce a focal plane more than three-times flatter than a standard Schmidt-Cassegrain telescope and dramatically flatter than competing coma-free designs. This guarantees you visibly sharp stars across some of the largest CCD chips available today.

Improved Performance
Superior edge performance not only creates rounder, more pleasing stars, but actually improves the resolution and limiting magnitude when compared to telescopes of equal aperture. With Celestron’s StarBright XLT optical coatings on every surface, EdgeHD optics gives you maximum light throughput across the widest visual and photographic spectrum.

Mechanical Features
In addition to EdgeHD’s optimized optical design, the telescope tube has been redesigned to make sure you get the most from your optics each and every night.

Mirror clutches - Flexible tension clutches hold the mirror in place and reduce image shift when taking long exposure astro-images. Once focused, the flexible rods allow the mirror to be held in place without putting any force or pressure on the mirror assembly, keeping the image centered in the eyepiece (or on the sensor).
Tube vents - Cooling vents located on the rear cell allow hot air to be released from behind the primary mirror. Each vent has an integrated 95-micron micromesh filter guaranteed to let warm air out without letting dust in.
Fastar versatility - EdgeHD is the most versatile imaging telescope available today. At its native f/10, you can achieve the image scale necessary to capture the smallest of deep sky objects. Add the optional reducer lens—custom-designed for your size EdgeHD tube—and you can increase your field of view without sacrificing optical performance. A Barlow gives you added power for high-resolution planetary, lunar and solar imaging. All EdgeHD optical tubes are Fastar-compatible, allowing the secondary mirror to be removed and replaced with a third party lens accessory for ultra-fast f/2 wide field imaging.

Individually Tested
Every EdgeHD that ships has been tested not only for the surface quality of each optical component, but also with a camera and artificial star to ensure the imaging system meets our rigid quality assurance. This “final acceptance test” confirms the EdgeHD will perform in the field and deliver high-quality astroimages.

CGX Mount
Celestron’s engineering team have applied their years of experience designing German Equatorial mounts to the all-new CGX EQ, a culmination of all the advancements made to our technologies, value, and ease-of-use.

The new CGX was designed to better support your telescope for both visual and astro-imaging pursuits. Key design goals included a lower profile EQ head, which provides a more compact and therefore more stable setup; a better drive system; remote operation-friendly with home and limit optical sensors; easier polar alignment adjustments; and better cable management. In addition to that, we’ve made mechanical and ergonomic improvements throughout to make the mount sturdier, easier to use, and transport. The CGX is our new Equatorial backbone to support a wide range of telescopes.

Included in this package
11" HD Optical Tube Assembly
Celestron’s premium StarBright XLT coatings provide maximum light transmission
A 9x50 finderscope, 2" mirror diagonal for more comfortable viewing, and wide-angle 23 mm Luminos 2" eyepiece are all included
CGX Equatorial Head
CGX Tripod
Accessory Tray
One 17 lbs counterweight
NexStar+ Hand Control
DC Power Cable (plugs into cigarette lighter socket)

HD Features
Experience our best optical performance with EdgeHD’s ?at-?eld and coma-free optics for pinpoint stars all the way to the edge of today’s largest imaging sensors and widest eyepieces
Aluminum optical tube with tube vents featuring an integrated 95-micron mesh filter allows hot air to be released from behind the primary mirror. Mirror support knobs hold the mirror in place and reduce image shift during imaging
Versatile design accommodates 3 focal ratios: native f/10, f/7 with the addition of a focal reducer, or ultra-fast f/2 imaging with a removable secondary mirror and third-party accessories

Computerized Mount Features
All-new design. Sturdier and more rigid with quicker dampening time
Increased load capacity to 55 lbs.
Improved motors provide more torque, better slewing and tracking under heavy loads
Heavy Duty belt-drive system minimizes backlash while providing smooth motor operation under heavy loads
Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh
Internal cabling for worry-free remote operation. Power input and accessory ports remain stationary while the mount slews to avoid snags
Internal hard stops for both axes prevents cable tension and tripod strike
Internal optical sensors on both axes for simple and safe remote operation
Home sensors allow the mount to always start in the index position regardless of orientation before a power reset
Limit sensors automatically shut off slewing or tracking before reaching the hard stop fail safe
Brand new control software developed in conjunction with PlaneWave Instruments for professional level control operation and imaging
Software includes multi-point mount modeling for extremely precise pointing accuracy and many more additional features for remote astroimaging
Wider tripod stance for improved stability
Adjustable EQ head position to optimize center of gravity over the tripod and fully utilize the increased 3º-65º latitude range
Dual-fit CG-5/Vixen and CGE/Losmandy dovetail saddle

Improved tripod includes:
2" steel legs with height index marks for quick leveling
"Jack of all trays" can hold three 1.25" eyepieces, two 2" eyepieces, your smartphone, or other accessories
+20º of additional tracking past the meridian on either side
Tripod legs can be collapsed with accessory tray installed for faster setup and transport

Improved ergonomics:
Two handles for easy pickup and transport
All-new ergonomically designed dovetail clamping knobs
Innovative and improved polar alignment adjustment system
All-new ergonomic latitude adjuster for smooth and easy adjustment under full loads
Optional add-on polar axis finderscope - coming soon

Electronics:
All-new NexStar+ hand control with USB port
Two AUX accessory ports to support wireless/WiFi alignment and operation with StarSense AutoAlign and SkyPortal WiFi Module accessories (sold separately)
USB 2.0 port, used to connect directly to PC with included software
Autoguider port
PPEC ready
Threaded 12VDC power input barrel connector
Internal Real Time Clock (keeps time and site information saved)

Optical Tube
Optical Design EdgeHD
Aperture (mm) 279.4 mm (11 in)
Focal Length 2800 mm (110 in)
Focal Ratio 10
Focal Length of Eyepiece 1 (mm) 23 mm (0.91 in)
Magnification of Eyepiece 1 122x
Finderscope 9x50
Star Diagonal 2" w/ 1.25" adapter
Optical Tube Aluminum
Highest Useful Magnification 660x
Lowest Useful Magnification 40x
Limiting Stellar Magnitude 14.7
Resolution (Rayleigh) 0.5 arc seconds
Resolution (Dawes) 0.42 arc seconds
Light Gathering Power (Compared to human eye) 1593x
Secondary Mirror Obstruction 3.75 in (95 mm)
Secondary Mirror Obstruction by Diameter 34%
Secondary Mirror Obstruction by Diameter 12%
Optical Coatings StarBright XLT
Optical Tube Length 24 in (610 mm)
Optical Tube Weight 28 lbs (13 kg)
Dovetail Compatibility CGE Mount

Mount
Mount German Equatorial Mount
Instrument load capacity 55lbs
Tripod height adjustment range 47.25” to 77.5” including EQ headA
Tripod leg diameter 2"
Latitude adjustment range 3º-65º
Tripod Weight 19.2 lbs
EQ Head Weight 44 lbs
Max Slew Speed 5º/second (4º/second is default)
Tracking Rates Sidereal, Solar and Lunar
Number of Auxiliary ports (for hand control and accessories) 2
Autoguide Port Yes
USB Port Yes
Software New Telescope control PC software

Delivery charge £5.95
