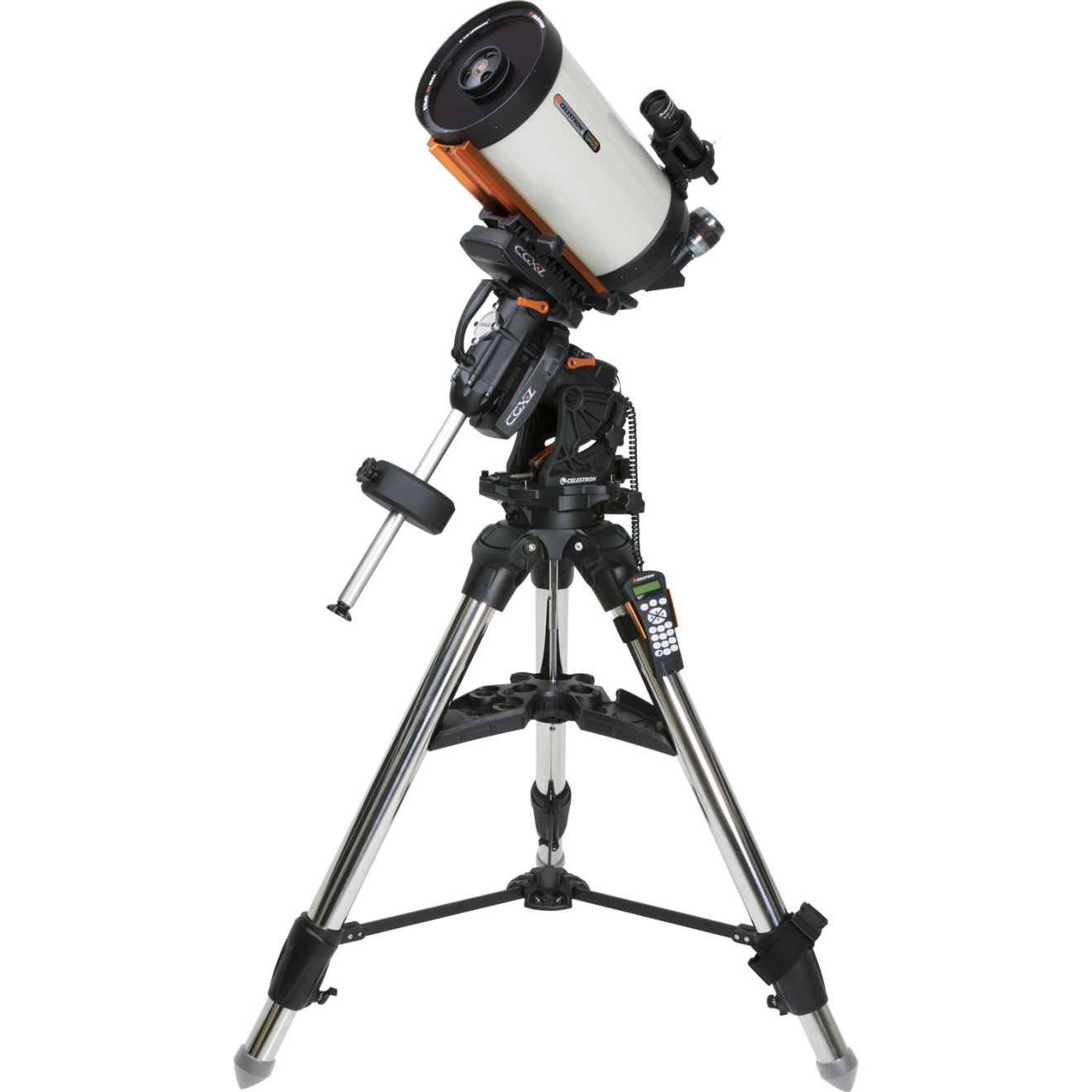

Celestron CGX-L Equatorial 925 HD Telescope

Further details

The EdgeHD optical system combines all the compact power popularized by the SCT with an improved high definition optical system for wide field, astrograph quality images. As a visual instrument, EdgeHD optics deliver pinpoint images even with your widest field eyepiece. You can search for all of the Messier Catalog objects, and see hundreds of other NGC, IC and Caldwell objects with amazing clarity. For astro imaging, EdgeHD optics produce aberration-free images across your favorite CCD or DSLR camera. All EdgeHD optics are designed to produce an extremely flat focal plane precise enough to match the strict tolerances of the largest commercial CCD detectors,

Celestron's newly designed CGX-L Computerized Equatorial mount is the latest addition to our fully computerized equatorial mount series. Capable of carrying Celestron’s largest optical tubes with ease, CGX-L is designed for backyard observatories and remote imagers looking for exceptional load capacity to weight ratio, compact design, and innovative features that fully support large telescopes, imaging kits, and the latest in wireless tech accessories.

Included in the package
9.25" HD Optical Tube Assembly
CGX-L EQ Mount and Tripod
Celestron’s premium StarBright XLT coatings provide maximum light transmission
A 9x50 finderscope, 2” mirror diagonal for more comfortable viewing, and wide-angle 23 mm Luminos 2" eyepiece are all included

HD Features
Experience our best optical performance with EdgeHD’s ?at-?eld and coma-free optics for pinpoint stars all the way to the edge of today’s largest imaging sensors and widest eyepieces
Aluminum optical tube with tube vents featuring an integrated 95-micron mesh filter allows hot air to be released from behind the primary mirror. Mirror support knobs hold the mirror in place and reduce image shift during imaging
Versatile design accommodates 2 focal ratios: native f/10 or ultra-fast f/2 imaging with a removable secondary mirror and third-party accessories

New CGX-L Features

Increased 75 lb load capacity. Exceptional load capacity to weight ratio

Additional Aux accessory ports and autoguider port on the Dec axis for better cable management

Larger 144 mm diameter worm wheels to better and more accurately drive heavier loads

Longer 270 mm dovetail saddle to better support larger optical tubes

Massive 70 mm stainless steel tripod legs with a wider stance for improved stability under heavy loads

New accessory tray holds three 1.25” and two 2” eyepieces with an upright stand for your smartphone or tablet

Heavy duty, 31.5 mm stainless steel counterweight shaft to support additional counterweights

Optional add-on polar axis finderscope custom designed for CGX and CGX-L

Supports WiFi and wireless operation accessories such as StarSense AutoAlign and SkyPortal WiFi Module (sold separately)


Compact, lower profile equatorial head provides improved stability and portability. Sturdier and more rigid with quicker dampening time

Improved motors provide more torque, better slewing and tracking under heavy loads

Heavy duty belt-drive system minimizes backlash while providing smooth motor operation at full capacity

Clear windows built into motor covers so pulleys and belts can be monitored

Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh

Internal cabling for worry-free remote operation. Power input and lower accessory ports remain stationary while the mount slews to avoid snags

Internal hard stops for both axes prevent cable tension and tripod strike

Internal optical sensors on both axes for simple and safe remote operation

-Home sensors allow the mount to always start in the index position regardless of orientation before a power reset

-Limit sensors automatically shut off slewing or tracking before reaching the hard stop fail safe

Includes Celestron's new PWI telescope control software, co-developed by PlaneWave Instruments. Software features multi-point mount modeling for extremely precise pointing accuracy

Software Polar Align: “All-Star Polar Alignment” allows quick and very precise polar alignment. Align on any bright named star without extra polar alignment accessories, apps, or other assistance

Adjustable EQ head position to optimize center of gravity over the tripod and fully utilize the increased 3º-65º latitude range

Dual-fit Vixen/CG-5 and Losmandy/CGE dovetail saddle

+20º of additional tracking past the meridian on either side

Redesigned tripod has a widened stance for added stability. The minimum tripod height has also been lowered per user feedback

Tripod legs can be collapsed with accessory tray installed for faster setup and transport

Improved Ergonomics:

Integrated handles for easy transport and portability

All-new ergonomically designed dovetail clamping knobs

Innovative and improved polar alignment adjustment system

All-new ergonomic adjustment knobs with reduced friction for smooth and easy positioning under full loads. Stationary latitude knob with a newly-designed linkage system greatly reduces the amount of friction when polar aligning the mount. Redesigned azimuth adjustment with low-friction Teflon bearings to make adjustments easy under full load. No more binding, rough adjustments!

Easy to read latitude scale for improved setup accuracy


Electronics:
NexStar+ hand control with USB port

USB 2.0 port used to connect directly to PC with PWI Software

2 available autoguider ports for optimum cable management

PEC sensor and PPEC ready

Threaded 12VDC power input barrel connector

Internal Real Time Clock (keeps time and site information saved)

On/Off rocker switch with red LED

Specifications
Optical Design EdgeHD
Aperture (mm) 234.95 mm (9.25 in)
Focal Length 2350 mm (93 in)
Focal Ratio 10
Focal Length of Eyepiece 1 (mm) 23 mm (0.91 in)
Magnification of Eyepiece 1 102x
Finderscope 9x50
Star Diagonal 2" w/ 1.25" adapter
Optical Tube Aluminum
Highest Useful Magnification 555x
Lowest Useful Magnification 34x
Limiting Stellar Magnitude 14.4
Resolution (Rayleigh) 0.59 arc seconds
Resolution (Dawes) 0.49 arc seconds
Light Gathering Power (Compared to human eye) 1127x
Secondary Mirror Obstruction 3.35 in (85 mm)
Secondary Mirror Obstruction by Diameter 36%
Secondary Mirror Obstruction by Diameter 13%
Optical Coatings StarBright XLT
Optical Tube Length 22 in (559 mm)
Optical Tube Weight 21 lb (9.53 kg)
Dovetail Compatibility CGE Mount

Mount German Equatorial
Instrument load capacity 75 lb
Tripod height adjustment range 35.75” to 52.75”
Tripod leg diameter 2.75"
Latitude adjustment range 3º-65º
Tripod Weight 46.2 lb
EQ Head Weight 52.6 lb
Max Slew Speed 4º/second (3º/second is default)
Tracking Rates Sidereal, Solar and Lunar
Number of Auxiliary ports (for hand control and accessories) 4
Autoguide port Yes
USB Port Yes
Software PWI Telescope Control Software

Included Items
925 Edge HD Optical tube assembly
CGX-L Equatorial Head
CGX-L Tripod
Accessory Tray
1 x 22 lb Counterweight
NexStar+ Hand Control
DC Power Cable (plugs into cigarette lighter socket)
8 mm Allen Wrench (contained in rear carry handle)
