Explore Scientific Universal Camera Dovetail Kit

Product Description

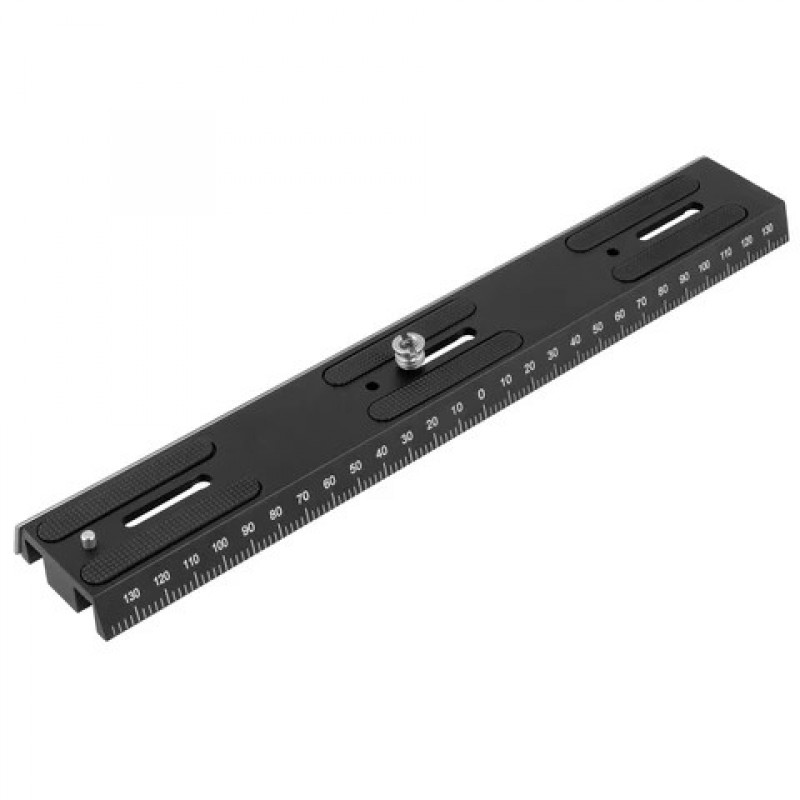

The Explore Scientific camera dovetail rail is made of die-cast aluminium. The dovetail-shaped mounting rail is 45 mm wide (similar to the Vixen dovetail style) and 280 mm long. The matt black anodized surface has a laser engraved scale on one side with a fine graduation with 2 mm increments. This makes it easier to determine the center of gravity when placing the camera on the mounting head. To protect the clamping surface there is a stainless steel clamping plate on the opposite side. The dovetail plate is equipped with rubber inserts at 3 positions. This allows a secure mounting of the camera equipment and prevents unintentional slipping and twisting. The mounting rail has a screw fastening with 1/4 inch photo thread, which is suitable for almost all commercially available camera systems. The screw attachment can be used in 3 different elongated hole positions to adjust a perfect balance. In addition, an adapter from 1/4 inch to 3/8 inch photo thread is also included, so that ball heads with the larger thread version can also be used directly. The camera mounting rail weighs only 250 grams.

UNIVERSAL
Suitable for all mounts that accept the popular Synta Vixen-GP dovetail rail. Exceptional stability with rubber grips, includes 1/4 & 3/8 adapters

FEATURES
Universal camera mounting rail
Dovetail with 45 mm width
Length 280mm; weight 250 grams
Suitable for EQ mounts with Vixen GP dovetail
Camera mounting screw with 1/4 inch photo thread
Thread adapter 1/4 inch to 3/8 inch
Laser engraved scale with 2 mm fine graduation
Stainless steel clamping plate
Rubber inserts against slipping and twisting
3 elongated holes for mounting the camera

WHAT'S INCUDED
Camera mounting rail
Mounting screw 1/4 inch
Thread adapter 3/8 inch

DIMENSIONS & WEIGHTS
Total length 280 mm
Total width 46 mmTotal height 15 mm
Net Weight total (incl. accessories) 250 g
