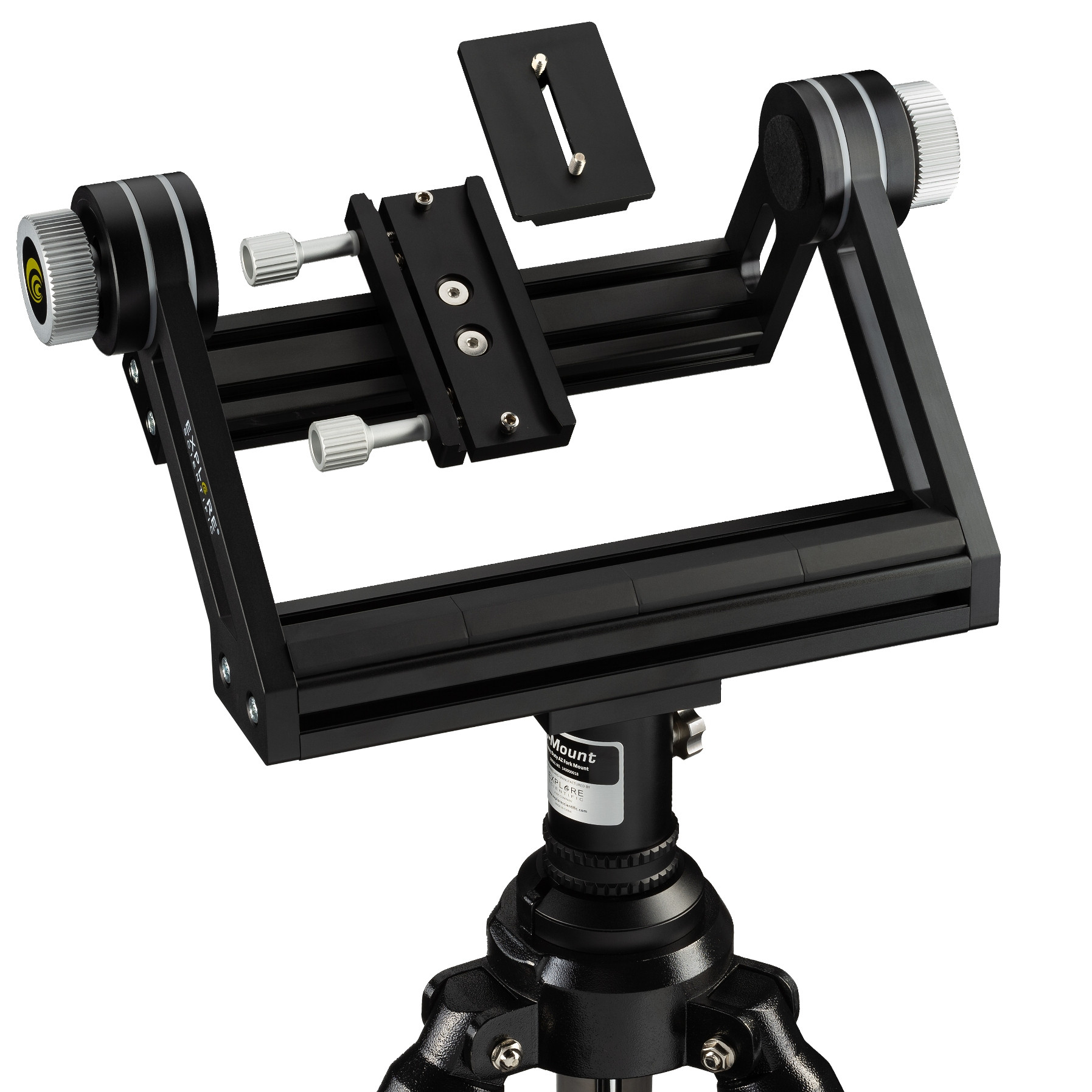

Explore Scientific U-Mount with Tripod for giant Binoculars

Product Description

When using giant binoculars, a stable mount and tripod with an appropriate load capacity is absolutely necessary. The new Explore Scientific U-mount with field tripod has been specially designed for the EXPLORE SCIENTIFIC BT series of giant binoculars, but also fits most other binoculars from 70 to 120mm lens diameter, which have a 1/4 inch photo thread connection on the underside. With the U-mount there is no shaking or annoying vibrations, the combination is as solid as a piece of iron and provides unlimited observation pleasure in all binocular adjustment positions. Whether you are observing the starry sky or the landscape, the U-mount is a solid base for your giant binocular and allows soft and smooth movements in both axes.

The U-mount is perfect for giant binoculars
An easily transportable but solid mount is essential when using giant binoculars. A simple photo tripod with ball head or video tilt head is quickly overloaded here. The new Explore Scientific U-mount has an excellent mechanism with adjustable friction in both axes, and allows easy adjustment and tracking even when the load is fully utilised. Depending on the adjusted intensity of the friction, the binocular position is kept stable or a soft and smooth movement can be achieved. The large adjustment screws on both axes are smooth and easy to operate even with gloves and clammy fingers. Vibrations are reduced to an absolute minimum by the solid construction of the U-mount. Even at high magnification, there are no shakes and the finest details can be observed. The U-mount and tripod can be separated for easy transport.

Mounting giant binoculars on the U-mount
The binoculars can be mounted and removed in a few seconds using the quick-release adapter plate included in the scope of delivery. This is a major advantage, especially for mobile outdoor use. The connection between binoculars and adapter plate is made by two 1/4 inch threaded bolts (standard photo tripod thread), which are variably guided in a slotted hole. A universal use with different binoculars is thus possible. The double screw connection guarantees a very secure fit of the binoculars. The adapter plate itself is also attached to the U-mount with the help of two large clamping screws, which are easy to use even when wearing gloves. Nothing wobbles here and all controls are easy to use.

Stable field tripod included
No matter what the surface, the EXPLORE SCIENTIFIC field tripod provides a safe stand. The solid aluminium and stainless steel construction effectively suppresses any kind of vibration. The large 50mm diameter stainless steel tripod legs and the aluminium tripod head plate are an ideal combination and offer maximum stability with a moderate transport weight of only 5.8kg. With applied and retracted tripod legs, the transport dimension is only 80cm long. The included accessory tray additionally gives some tension outwards to the tripod legs and thus to increase the stability. By pulling out the tripod legs, the working height for the binoculars can be individually adjusted within a range of approx. 100 to 140cm.

Features
Solid fork mount with tripod for giant binoculars
Comfortable observation position in all orientations
Excellent mechanism for adjustment and tracking of the binocular
Smooth and even movement of the binocular
Stepless friction adjustment in both axes
Large hand wheels for adjustment - no problem even with gloves
Secure holding of the binocular in all adjustment positions
Ideal vibration damping thanks to the sturdy stainless steel tripod
Integrated accessory tray made of aluminium
Carries binoculars up to 12kg absolutely safely
Adjustment range vertical axis: 0 to 90 degrees
Adjustment range azimuth axis: 360 degrees (without limitation)
Maximum possible width of the binoculars: 290mm
Quick change adapter plate with 2 x 1/4 inch photo thread screws
Double prismatic clamping of the quick-change adapter plate
Setting height of tripod with mounting: approx. 100 to 140 cm
Tripod leg tube diameter: 50 mm
Transportation size tripod: ca. 80 cm length
Weight mounting/tripod: 5.5 / 5.8kg
Material mounting/tripod: aluminium / stainless steel
Shipping size/weight mount: 51x42x28cm, 7.6kg
Shipping dimensions/weight tripod: 87x21x22cm, 6.5kg

Included
U-Mount with field tripod
Quick change adapter plate
Accessories tray
Instruction manual
