Home Accessories SkyWatcher Accessories SkyWatcher 90 Degree Polar Scope Eyepiece

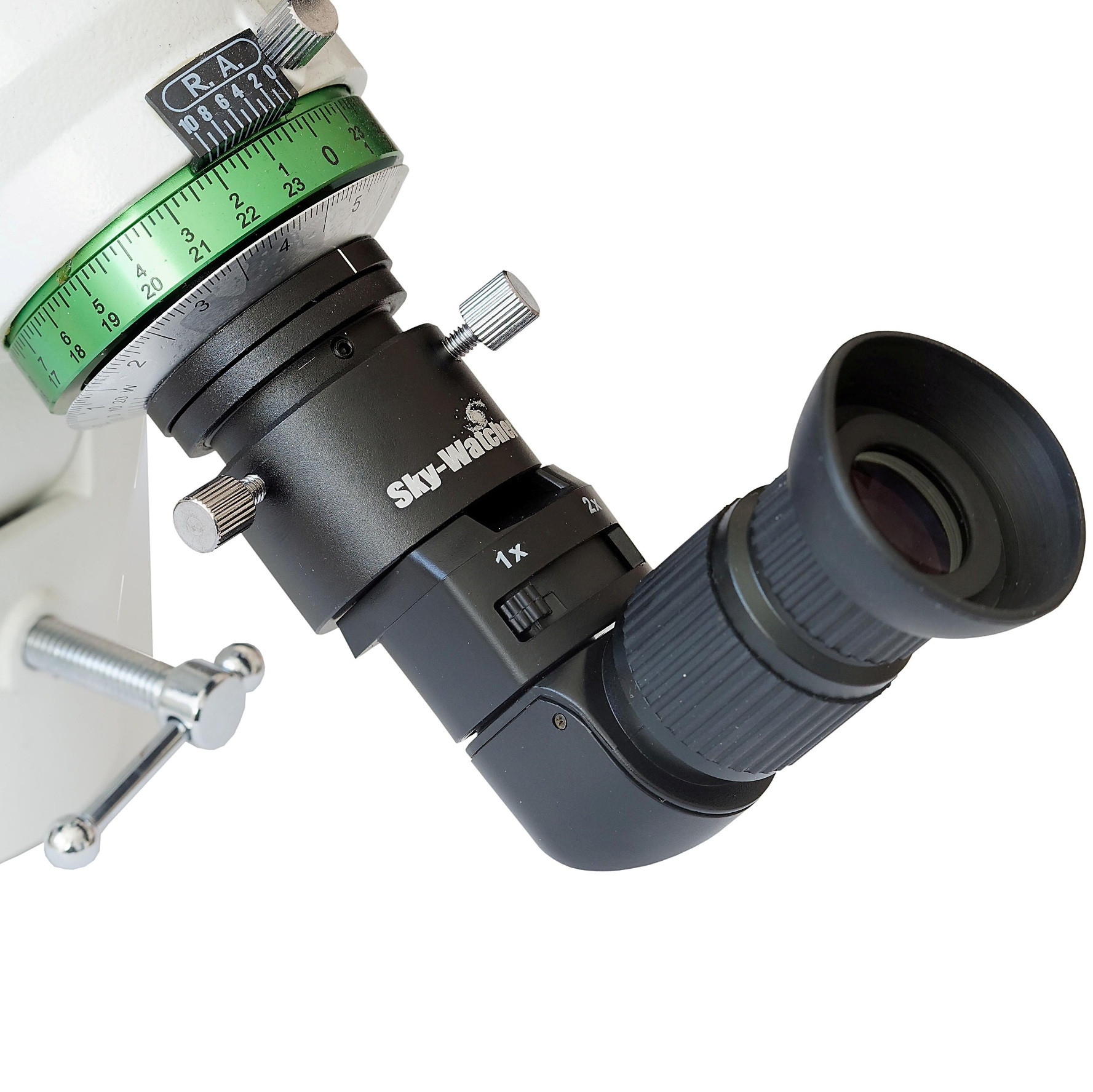

The Sky-Watcher 90 degree Polar Scope Eyepiece now makes polar aligning your mount so much easier and avoids neck strain! The eyepiece sleeve securely clamps over the standard polar scope eyepiece using three non-marring, plastic-tipped, knurled metal thumbscrews for optimum positioning. This is a far superior method of clamping compared non SkyWatcher products on the market that use only one clamping screw and more reliable than those using a brass compression ring, which can be problematic. The internal diameter of the eyepiece clamping sleeve is 30.1mm. Rotatable, Zoom and Focus adjustmentThe 90 degree eyepiece can rotate 360 degrees around its axis in click-stops to the desired position. The eyepiece can be switched between 1x and 2x magnifications for increased accuracy and focused preciselyPolar Align in ComfortFor Polar Aligning in comfort at 90 degrees, the eyepiece is fitted with a soft fold-down rubber eyecup. An adjustment of + and - 4 dioptres is provided to adjust to your eyesight. Suitable for fitting to the polar scopes of most popular equatorial mounts providing a comfortable 90 degree angle for the user. Suitable for these Mounts and moreSkyWatcher EQ3, EQ5, AZ-EQ5, HEQ5, EQ6, EQ6-R, AZ-EQ6, SAM & STAR ADVENTURER - Celestron AVX, CGEM mounts as well as many mounts of other brands with a Polar Scope eyepiece up to 30mm diameter. It is secured to your existing polar scope using a superior three screw system with non marring tips.
Brilliant service from Harrisson Ordered Friday, arrived Saturday and im in N. Ireland. Very impressive service. The item itself is a very useful piece of kit. I put it together and tested indoors and looked good, felt good and going to save a lot of twisting yoyr head and neck. Very happy and very impressed with delivery. (01/09/2024) -
First class accessory for my skywatcher eq5 German mount. No more kneeling down on wet grass, or cricked neck polar aligning! Excellent next day delivery as usual from Harrison scopes. (29/07/2024) M culver - Kent
Fantastic bit of kit Never had any problems super service fast delivery and quality items. I love the Solar scope eyepiece makes life so easy no more sitting on a damp floor works Fantastic. Great team Great Service ATB (20/02/2024) - Staffordshire
Essential piece of kit! As others have said, this saves a whole heap of aggravation when trying to Polar-align. I really think it should be incorporated into the scope as standard Usual exceptional service from Harrisons (07/12/2023) Graham - Tywyn
90 degree polar scope adaptor. This has made polar alignment so much easier. As another has said, at my age, the need to scrunch down and twist around into a position that allows me to sight through the polar scope, is just not a sensible or practical option anymore. Having a rotating end allows for optimum viewing options and i (12/02/2023) Richard Adams - NW Leicestershire
Great product Makes life so much easier, at my age kneeling down to polar align is getting hard on the knees but this makes it so much better. Fits straight onto my skyguider pro with no problem. (05/02/2023) -
Should have bought one years ago I thought this would make the polar scope display too dim but it doesn't. Makes aligning so much easier. Excellent service from Harrison as usual. I wish they stocked Televue eyepieces as they are now my preferred retailer - always super fast delivery ?? (30/10/2022) Richard Gifford - Norfolk, UK
This is a great piece of kit save you from getting a bad back a love it thank you just need clear sky now (20/02/2022) Billy Graham - Co Durham
Absolute Boon This 90 deg eyepiece worked really well in conjunction with our older Meade mount. It's the first time we have been able to truly align the pole star with ease and comfort. Build quality seems high too so would recommend without reservation. Harrison Telescopes were v. helpful with their advice too. (24/10/2021) -
SkyWatcher 90 degree polarscope eyepiece. Competitively priced. An excellent quality product. Polar alignment so much easier; I’m really glad I bought it. A minor criticism is that my mount’s end cap cannot be screwed back into place with the polarscope collar in place (the main body is detatchable). Smaller screws could solve this. (11/04/2021) Colin D. Anderson. LRPS. - Langley, Berkshire.
A real back saver Great product, really makes alignment so much easier - particularly that last check after loading. No more kneeling in the mud, no more knocking everything on the way back up either, lol. Super fast delivery too. (24/01/2021) Phil - Berkshire, UK
Top service, speedy delivery. Item came well packaged and very quickly. Very happy thanks! (10/01/2021) Craig - South Yorkshire
Good quality piece of equipment This is easy to use, comfortable and well built. Makes life a lot easier fine tuning your polar alignment, great little product. (29/12/2020) Len - Norfolk
Great product This makes polar alignment on my sky watcher adventurer much easier and more comfortable. The 1x/2x options is also particularly useful to achieve better accuracy. Well made product, yes pricey for what it is but it works very well and is a quality product. (28/11/2020) -
Invaluable piece of Astro kit This is such an invaluable piece of Astro kit as it finally allows one to view the polar alignment without crawling on ones knees. Great quality and price, would not be without it!! (24/10/2020) Chris Brown - Suffolk
really useful I got this mainly to avoid neck strain polar aligning my star adventurer mount but it also makes it so much more accurate zoomimg in, definitely a must have (13/10/2020) PAUL - KIDDERMISTER
