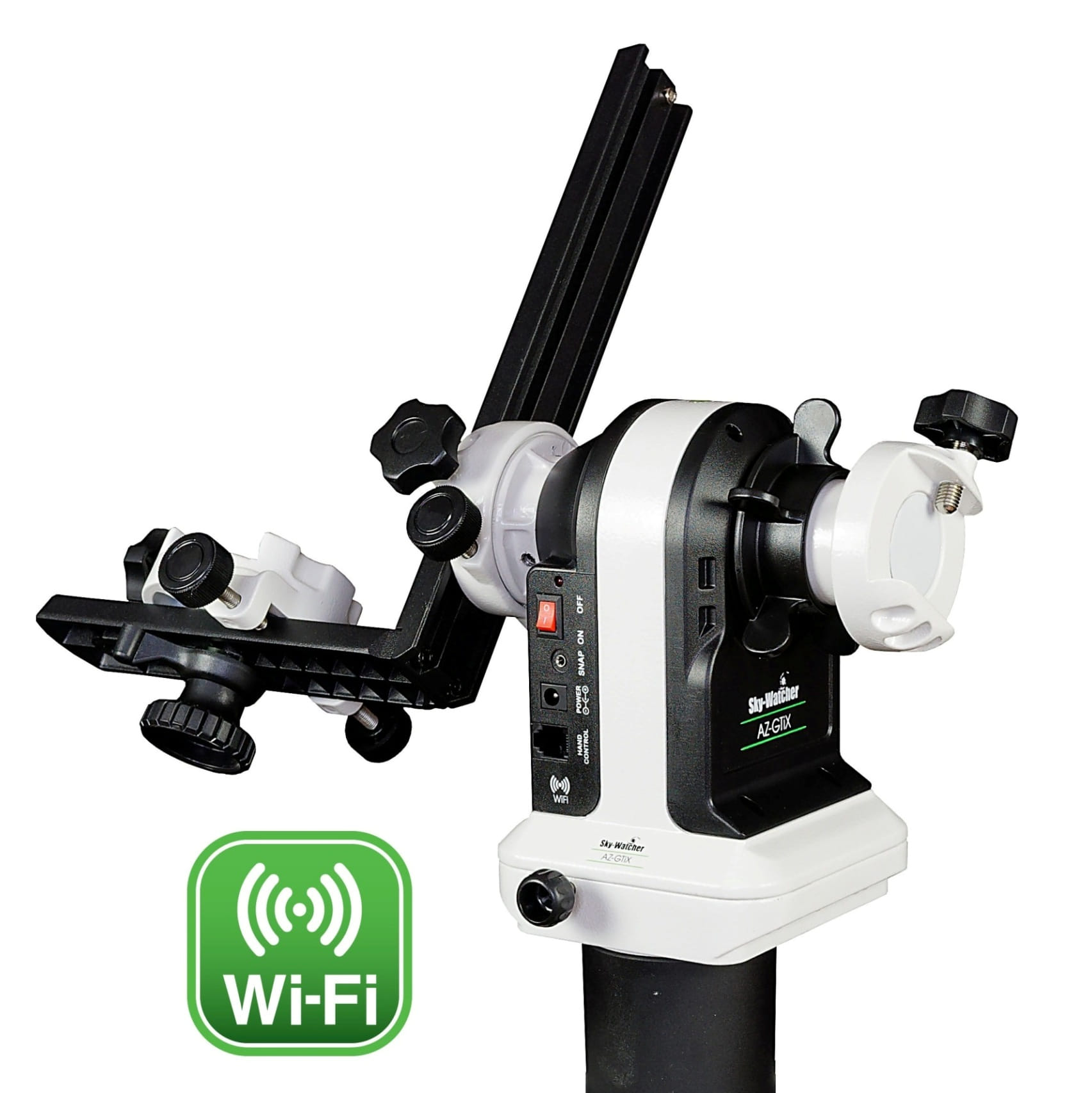

SkyWatcher AZ-GTiX WiFi Dual Saddle GoTo Alt-Az Mount Head

Product Description

Weighing only 2kg, the AZ-GTiX GoTo mount head can be connected to a tripod via its standard 3/8 inch tripod bush to fit a wide variety of tripods. This includes many photo tripods as well as the Skywatcher 3/8 stainless steel one or Star adventurer tripod.

The compact and portable Sky-Watcher AZ-GTiX Dual Saddle Alt-Azimuth GoTo Mount, with it's built-in Wi-Fi module, has been designed to be used with up to two telescopes and is controlled wirelessly with your Smartphone or Tablet, using the free SynScan App for iOS or Android. The AZ-GTiX creates it’s very own Wi-Fi network, so the mount can be used anywhere, without any reliance on other Wi-Fi networks. After entering your coordinates into the App and following a simple alignment procedure, you are ready to explore the universe using the App’s intuitive touchscreen menu.

WiF GoTo and Tracking
The AZ-GTiX and SynScan App provides full computerised GO-TO control and tracking, allowing your telescope to be automatically slewed to any one of the objects in the App’s extensive database of 10,000+ celestial objects.

Incorporates Sky-Watcher’s Freedom-Find patented Dual-Encoder Technology, which allows the telescope to be moved manually in either axis without the mount losing its positional information. This gives the user enormous freedom, convenience and flexibility during observational sessions.

The mount is quiet in operation, has a payload capacity of up to 6kg (using one saddle) or 10kg (using both saddles) and accepts telescopes with standard 45mm Dovetail Bars. Supplied with an L-Bracket with additional saddle plate and a 61mm extension pillar

Features:
Controller: Free SynScan App for iOS and Android mobile device or Synscan Hand Controller (available separately)
SynScan App Database: Total 10,000+ Objects. Deep Sky Objects: 10759, including Messier, NGC, IC, Caldwell Catalogues, Named DSOs, Named Stars: 305, Double Stars: 55, Solar system objects: 7 planets, Sun , Moon. (Unlimited objects when working with a 3rd party planetarium software).
SynScan App Alignment Method: Brightest Star Alignment, North-Level Alignment
SynScan App's Other Features: Tonight's Best Sky Tour, Point and Go with a mobile device, Identification of Celestial Objects, Remote control over Internet, User defined objects, Pointing Accuracy Enhancement (PAE)
Pointing Accuracy: Up to 10 arc-minute (RMS)
Resolution: 2073600 Counts/Rev., 0.625 arc-second
Resolution of Aux. R.A./Dec. Axis Encoders: 1068 Counts/Rev., approx. 20 arc-minutes
Freedom-Find™ Dual-Encoder Technology
Tracking Rates: Sidereal, Lunar, Solar, Alignment-Free Solar Tracking
Slewing Speeds: 0.5X, 1.0x, 8.0x, 16x, 32x, 64x, 128x, 400x, 800x
Tracking Mode: Dual Axis Tracking
Motor: DC Servo Motor, Gear Ratio 6480
Payload Capacity: 10kg Total Payload, 6kg Total Side Payload
45mm Sky-Watcher/Vixen type dovetail saddles
Interface: SynScan Hand Control Port, DSLR Shutter Release Port (optional cables available separately), Built-in Wi-Fi Module
Connectivity: ASCOM platform for Windows PC, Mobile planetarium App for iOS and Android ( SkySafari Plus/Pro, more are coming).
Network Protocol: UDP, Port 11880
3/8" Tripod Bush
Mount Head Weight: 2kg
Power Requirement: 8 AA Size Batteries (not supplied) or External Power Supply (DC 7.5~14V, 1A) Tip Positive.
