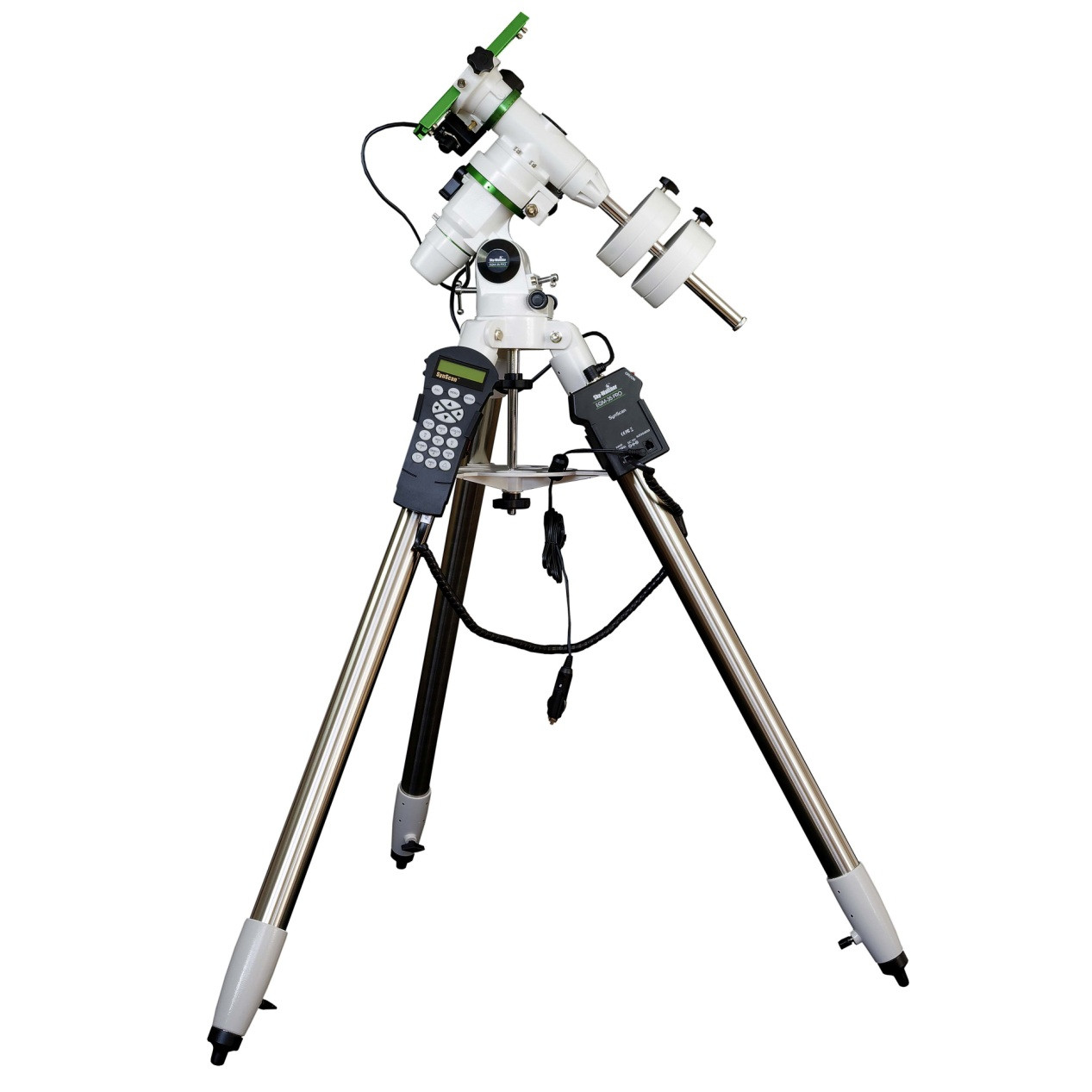

SkyWatcher EQM-35 Pro SynScan Modular Equatorial Mount

Further details

The Sky-Watcher EQM-35 PRO Synscan Modular Equatorial Mount offers the versatility of two specific mounts in one system. A fully computerised Go-To equatorial mount and a lightweight photo imaging mount, perfect for travel and DSLR imaging of the night sky.

In the standard configuration mode with DEC and RA axes, you can use it as a computerised Synscan equatorial mount with Go-To and tracking in both axes with access to 42,900+ objects in the Synscan handset's database. The payload capacity for visual use is an impressive 10kg in this configuration so many options on telescope tube assemblies are open to the user.

Dual capability for travel DSLR imaging
For travelling you can remove the DEC Axis from the mount together with the counterweight shaft and counterweights, reducing the instrument's weight considerably. In this configuration you can use a simple 44mm dovetail plate with standard 1/4 tripod screw (not supplied) and fit your DSLR camera directly using a ball head (not supplied). Alternatively a DSLR can be mounted to a Sky-Watcher Star Adventurer L-Bracket (not supplied). With the DEC axis removed the mount only tracks in RA and you can easily take photos. Now the mount works in a similar way to the Star Adventurer mount, but heavier duty for larger lenses or telescopes.

Improved stability and tracking accuracy
The mount head looks similar to the EQ3 PRO mount but it has many improved features and better performance. For example the mount is equipped with a large 92.5 mm diameter RA worm wheel with 180 teeth for high precision tracking (compared to 130 teeth for the EQ3). Also the strength of the base has been increased. This results in much greater stability, higher payload capacity and less vibration, essential for serious imaging. With these significant revisions the periodic error is also greatly improved.

The EQM-35 Pro SynScan is a conveniently sized mount with impressive features suitable for both novice & experienced astronomers alike, for both visual and imaging use.

Features
Positioning Accuracy up to 1 arc minute.
Enhanced by software collimation error (mount mechanical error) compensation.
High Precision Stepper Motors with 1.8° step angle
Resolution 0.28125 Arc Second
Slewing speed up to 3.4°/sec (800X).
ST-4 type Autoguider Interface:
Supports 0.25x, 0.5x, 0.75x 1x guiding rate
Dual or Single Axis Tracking
Tracking Rate: Lunar, Solar or Sidereal
V5 Synscan Hand Controller with 42,900+ Object database
Periodic Error Correction.
PC compatibility.
Synscan Handset Firmware Upgradeable
Supplied with Polarscope
Latitude Adjustment 15° to 65°
R.A. Worm Gear 92.5mm Diameter, 180 Teeth
DEC Worm Gear 34.3mm Diameter, 65 Teeth
R.A. Worm Drive 25.5mm Diameter, Steel
DEC Worm Drive 20mm Diameter, Steel
Payload Capacity 10kg
Stabiliser Bar 20mm Diameter, Steel
Counterweights supplied: 2 x 3.4kg
Weight of Mount Head: 4.38kg (3.28 kg with DEC & Bar removed)
1.75" Diameter Stainless Steel Tripod & Accessory Tray, Weight 5.7kg
Power Requirement DC12V 3A Tip Positive
Sky-Watcher 7Ah or 17Ah Power Tank Recommended

Delivery charge £5.95

Reviews

  Well Engineered Mount  A fantastic mount and a significant upgrade to the EQ3-AZ mount. Worked perfectly out of the box though the instructions are a little awkward. The polarscope is good but needs either a camera or a right-angle viewer without cricking your neck. Still don't understand how to use all the marking rings  (19/04/2023) BW - Gloucester

  A good mount, but flawed by sloppy quality control  Initially the axis were quite stiff on the mount head, this is quite well documented amongst users. There are plenty of YouTube tutorials on how to remedy this and its not that difficult if you have a small amount of skill. Works very well once sorted. Harrison were excellent as usual!  (24/11/2022) alan - darwin

  Skywatcher EQM-35 pro Synscan Mount  Bang for Buck this is a nice bit of Kit, Light Mount Head on a good solid Tripod and at 10 Kg a nice payload. Simple to set up and use. Well Pleased.  (25/09/2022) Robert Randall - Alexandria Scotland

  Great mount  A1 delivery from Harrison Telescopes. 1st OTA and goto mount ever used. It is not easy but perseverance will pay off. Read up, watch you tube etc. It will help if this is your first goto. I have had it for 4 months and no regrets. Great for deep space and flexible for dslr mount only.  (08/01/2022) Tony - Herefordshire

  Excellent communications and speedy delivery  I ordered my EQM-35 mount on the Saturday before Christmas and received it three days later, which I think is excellent service given the time of year. I also received timely updates between ordering and delivery. I wouldn't hesitate to order from Harrison Telescopes Ltd. again. Many thanks indeed.  (27/12/2020) Ade - mid-Norfolk

  Great Service and advice  After receiving great advice on my requirements, decided to go with this mount. Arrived promptly and now the fun begins. Initially, easy to put together now need to start using it and learn. Im confident that I can ask for more advice if required?   (02/09/2019) Lee Atkinson - UK, Staffs

  Superb service  Really good service. Ordered, delivered within 2 working days. As for the equipment everything in order and I just need to learn how to use it now.!   (11/01/2019) Andrew Spencer - Lancashire
