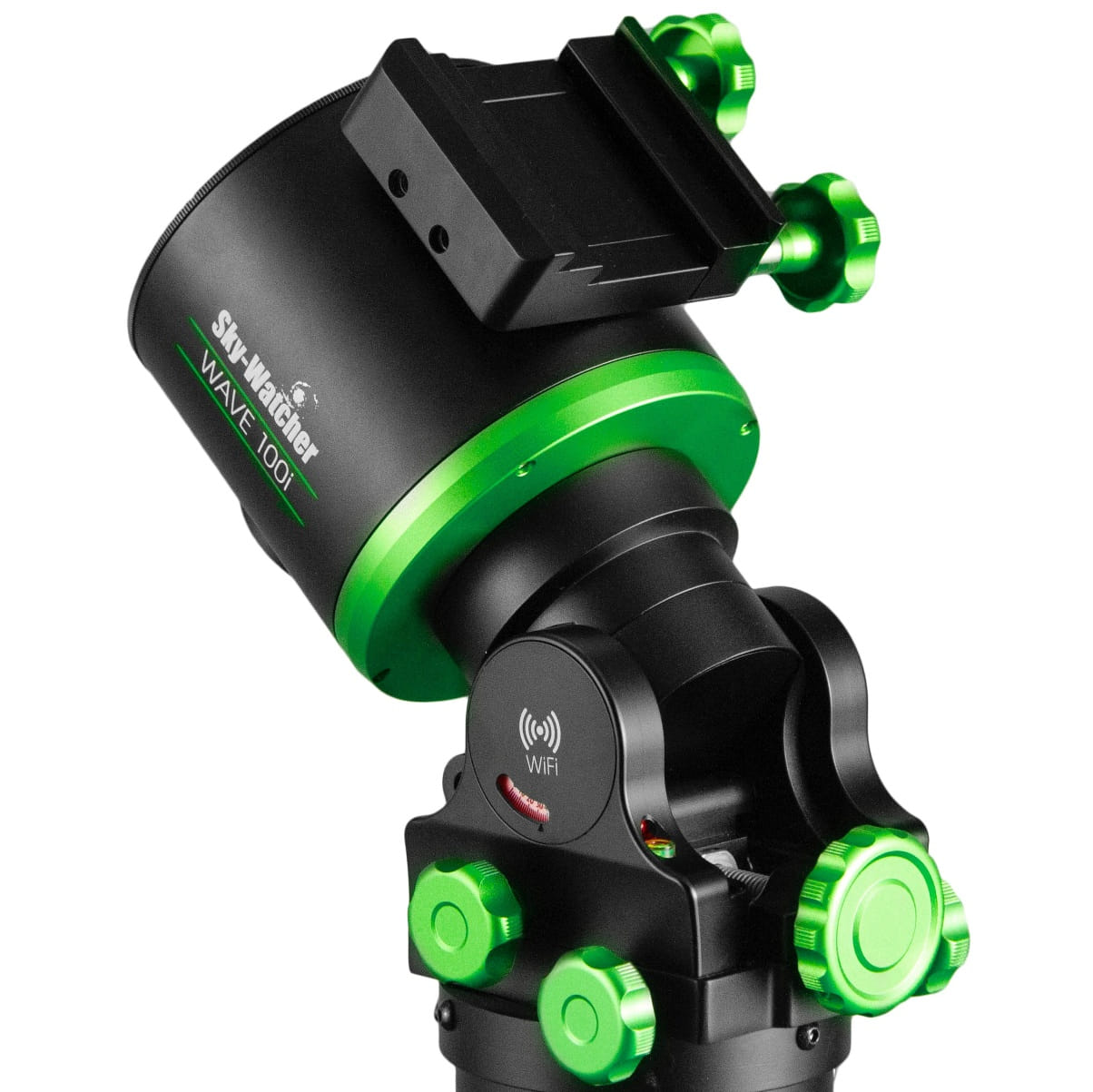

SkyWatcher WAVE-100i Strainwave Mount Head

Product Description

HIGH TORQUE. HIGH PRECISION. HIGH PORTABILITY.

Taking advantage of the strain wave design with its high torque and compact construction, Sky-Watcher's WAVE mounts deliver high precision and power in an affordable and portable package. With exclusive features found on no other strain wave mounts, the new WAVE series is a serious update and upgrade to Sky-Watcher’s already immensely popular family of astronomy mount platforms.

The Sky-Watcher WAVE-100i is built based on a strain wave or harmonic gearing design. This drive gear design provides a number of benefits including highly precise tracking with minimal backlash for capturing long exposure images, and a compact design with a remarkable payload to weight ratio for the use of various equipment while still being convenient for transportation.

The WAVE-100i, boasting 10kg of payload capacity (15kg with optional counterweight kit), whilst being incredibly compact and lightweight. Sky-Watcher’s WAVE mounts also feature both EQ and AZ tracking modes with RA and DEC home positions, Dual-Fit Saddles, 0–90º latitude range, Wi-Fi & Bluetooth capability, RA power-off braking, and a red backlit latitude display and bubble level to make your setup routine that much easier.

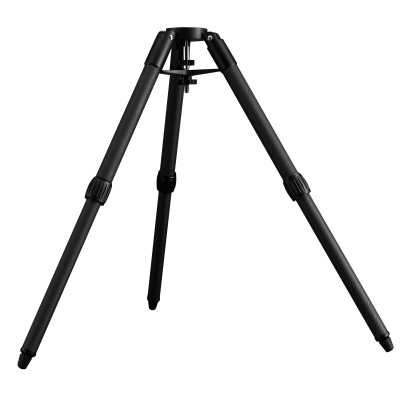

*Please note the Tripod, Extension Tube and Telescope OTA depicted in product photos are not included*

Specifications
Working Mode: Equatorial or Alt-Azimuth
Supplied with Dual-Fit 45mm/75mm Saddle & Secondary 45mm/75mm Saddle.
Mount weight: 4.3kg
Payload Capacity (without Counterweight): 10kg
Payload Capacity (with Counterweight: 15kg
Counterweight Kit, Extension Tube and Tripod Available Separately
Transmission Mode: Belt-Driven Stepper Motor with Harmonic Reducer
RA Harmonic spec: 17-100. DEC Harmonic spec: 14-100
Highest Speed: 2400x (10º/second)
Transmission Reduction Ratio: 300:1 (both axes)
Latitude Adjustment Range: 0°-90°
Connection Sockets: USB-B, Autoguider, SynScan Handset & Power Input
R.A. Lock Function (for easy counterweight installation)
Controllable by Wi-Fi and Bluetooth or optional SynScan Handset (available separately)
Compatible with the Sky-Watcher SynScan PRO app for Windows, iOS and Android devices.
Also compatible with Stellarium, SkySafari & Cartes du Ciel and third-party drivers or software like ASCOM or INDI
Power Requirement: 12V 2A DC
RA Power-Off Braking Function
RA and DEC Home Position and Limits function
Convenient Red LED Illumination for Latitude Scales & Bubble Level
Precision CNC Machined Body
Foam-Lined Carrying Case
