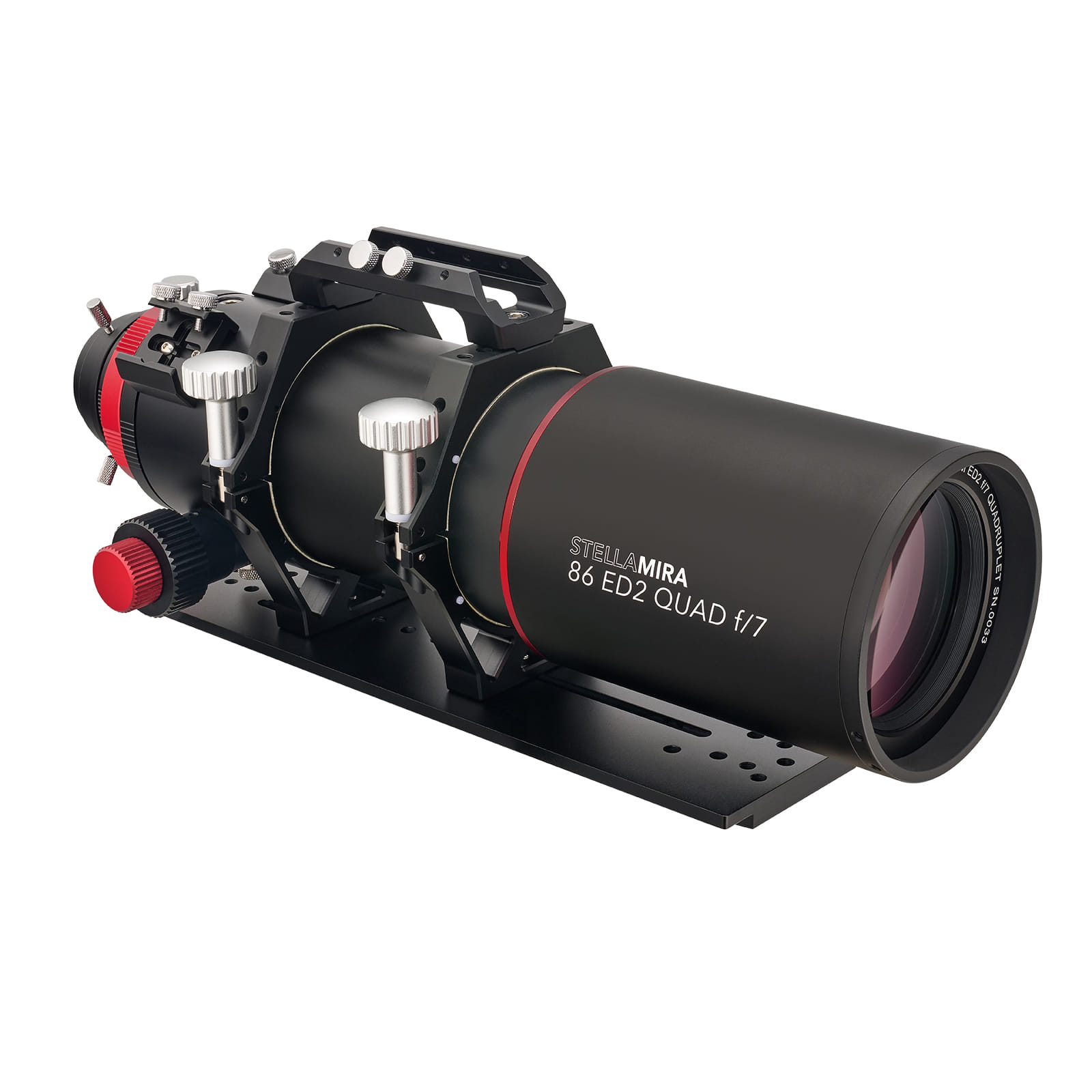

StellaMira 86mm ED Quadruplet f7 Flatfield Refractor Telescope

Product Description

All StellaMira quadruplet telescopes are QC-checked in the UK to ensure they achieve their full potential.
This NEW StellaMira 86mm f/7 ED quadruplet flatfield refractor is designed primarily for astrophotography, but can also be fitted with an optional Star Diagonal and eyepiece for visual astronomy.

Fully multi-coated quadruplet optics, with two ED lens elements, deliver high-contrast views with a flat field and very low chromatic aberration.

A built-in field flattener eliminates field curvature, providing a flat field with pin-sharp stars right into the edges, even up to full-frame. This type of built-in field flattener means you do not need to buy any additional, separate accessories to achieve a perfectly flat field and also means you do not have to worry about achieving a specific back focus distance—so long as you are in focus, your images will be nice and flat.

An optically matched StellaMira 0.8x Reducer is also available. It enables astrophotography at f/5.6 with an evenly illuminated imaging circle that covers sensor sizes up to full-frame.

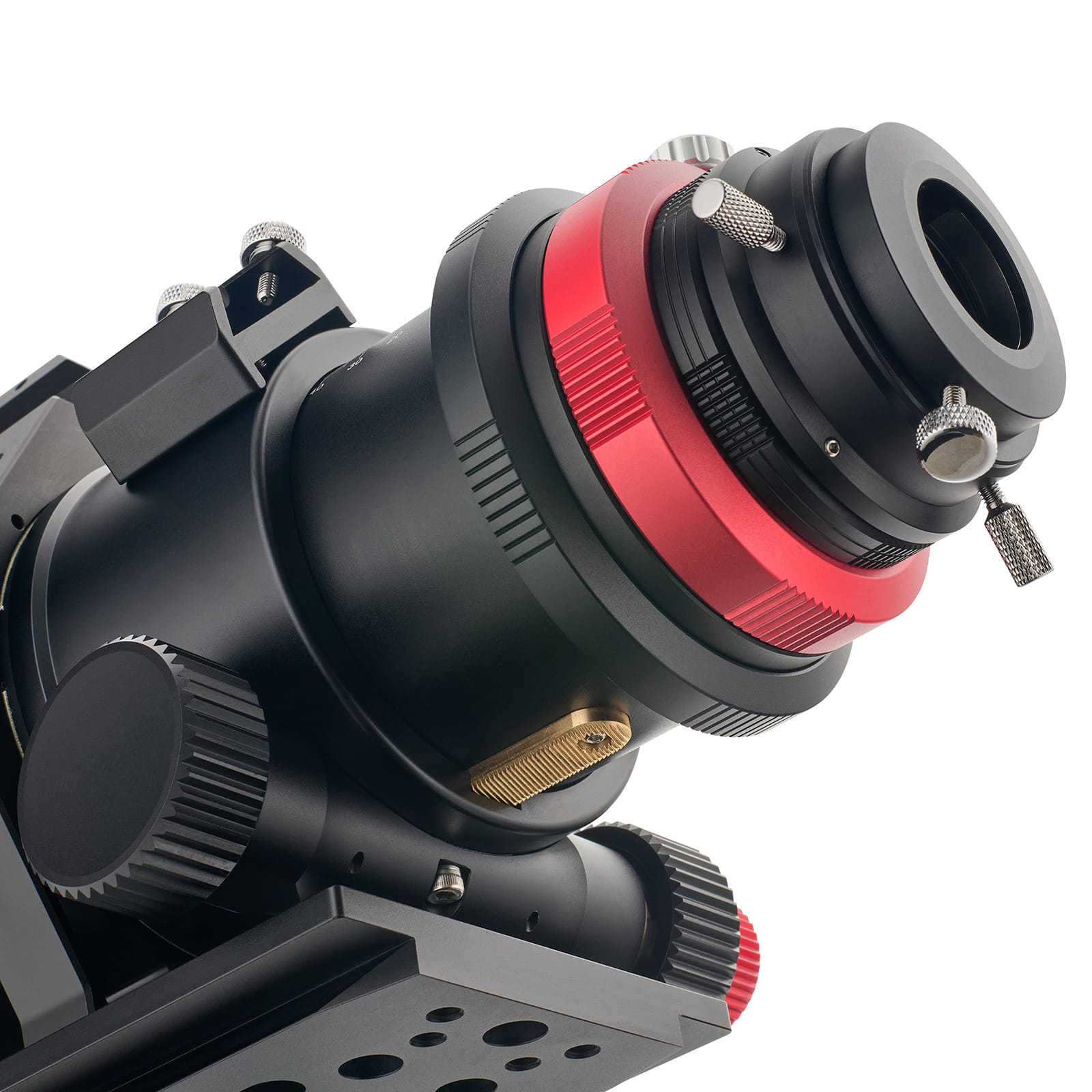

The sturdy 3.2" Rack & Pinion dual-speed focuser with 1:10 fine focusing and integral rotator provides excellent load-bearing capacity and precise focus adjustments.

CNC-machined aluminium tube and fittings provide high strength and rigidity.

The price includes CNC tube rings, a Losmandy-style dovetail mounting bar, a carry handle with finder show clamp, M68/M54/M48 camera adapters and an aluminium carry case.

Features
86mm Aperture
f/7 focal ratio / 602mm focal length
Quadruplet optics with 2x ED glass elements
Fully multi-coated optics for maximum light transmission and high contrast
Strong Aluminium Fibre tube with retractable dew shield
CNC-machined aluminium fittings
3.2" Dual-speed Rack & Pinion Focuser
1:10 Fine Focus mechanism
360º Camera Angle Adjuster (CAA)
Non-marring brass compression rings (2" clamp and 2" to 1.25" adapter clamp) for strong and secure connection
Supplied with M68, M54 and M48 astrophotography adapters
Fitted with a 2x Synta-style finder shoe
Supplied with tube rings, carry handle and Losmandy-style dovetail
The carry handle features an integrated Synta-style finder clamp for guide scopes and other accessories
Includes a heavy-duty Aluminium case with die-cut foam
Additional M6 threaded holes on the dovetail, handle and tube rings

Dimensions
Tube length (dew-shield retracted): 46cm (17.9")
Tube length (dew-shield extended): 55.5cm (21.9")
Tube diameter: 107mm (4.2")
Dew-shield external diameter: 123mm (4.8")
Focuser adjustment range: 85mm (3.3")
Tube weight: 4kg (8lb 13oz)
Tube weight with rings, dovetail & handle: 5.8kg (12lb 13oz)

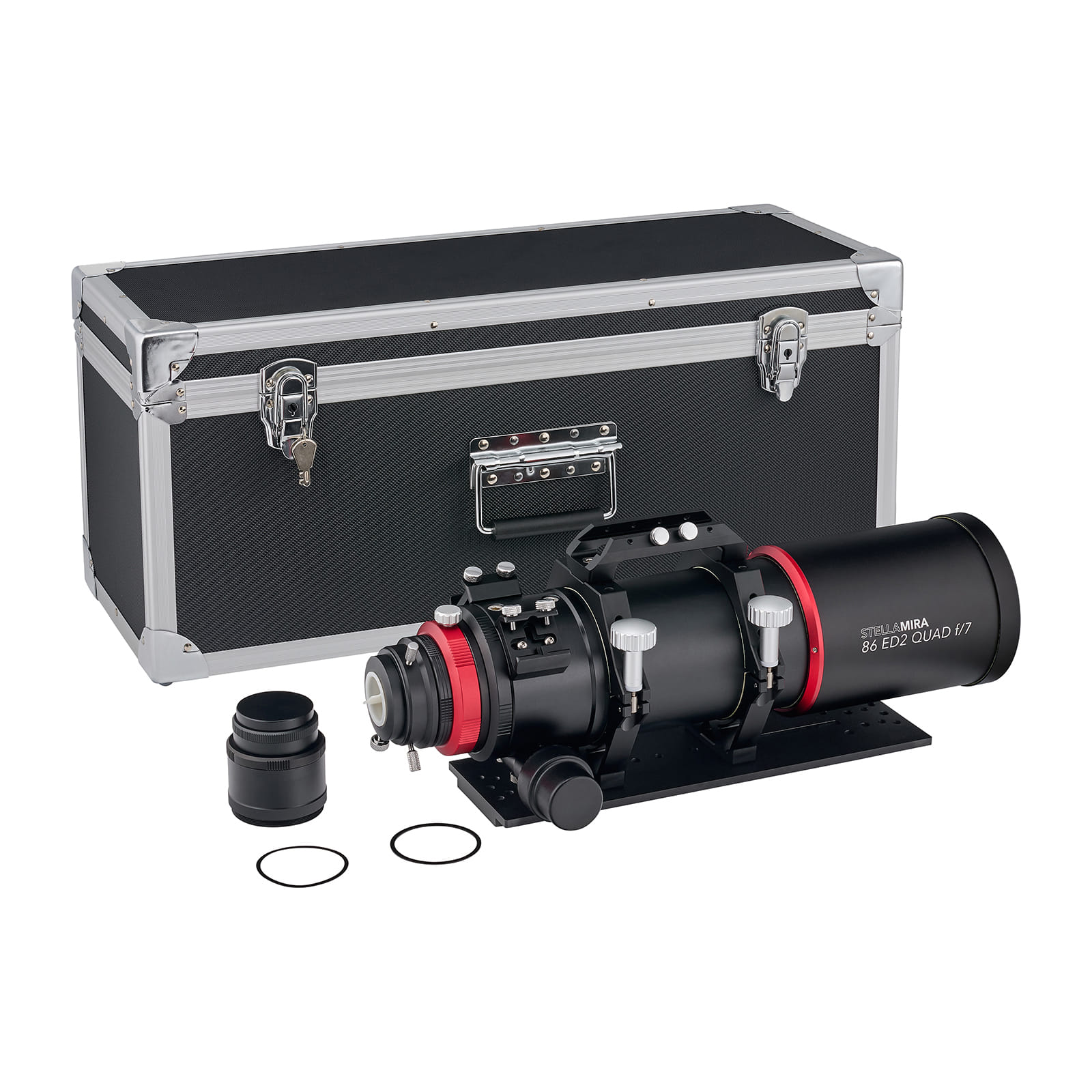

What's in the box
Telescope OTA
Losmandy-style Dovetail
Tube Rings
Handle / Mounting Bracket with Synta-Style Finder Clamp
M68, M54 and M48 Camera Adapters
2" to 1.25" Adapter
Storage Case

Specifications
Type Refractor
Aperture 86mm
Focal Length 602mm
Focal Ratio f/7

Optical Construction
Air spaced quadruplet, includes 2x ED element
Lens Coating Fully multi-coated
Tube Material Aluminium
Focuser 3.2" Rack & Pinion Dual Speed
Fine Focuser 1:10
Focuser Thread M68x1, M54x0.75, M48x0.75, 2" and 1.25"
Accessories Tube Rings, Losmandy-Style Dovetail & Synta-style Finder Clamp Handle
Case Aluminium case included with Die-Cut foam
