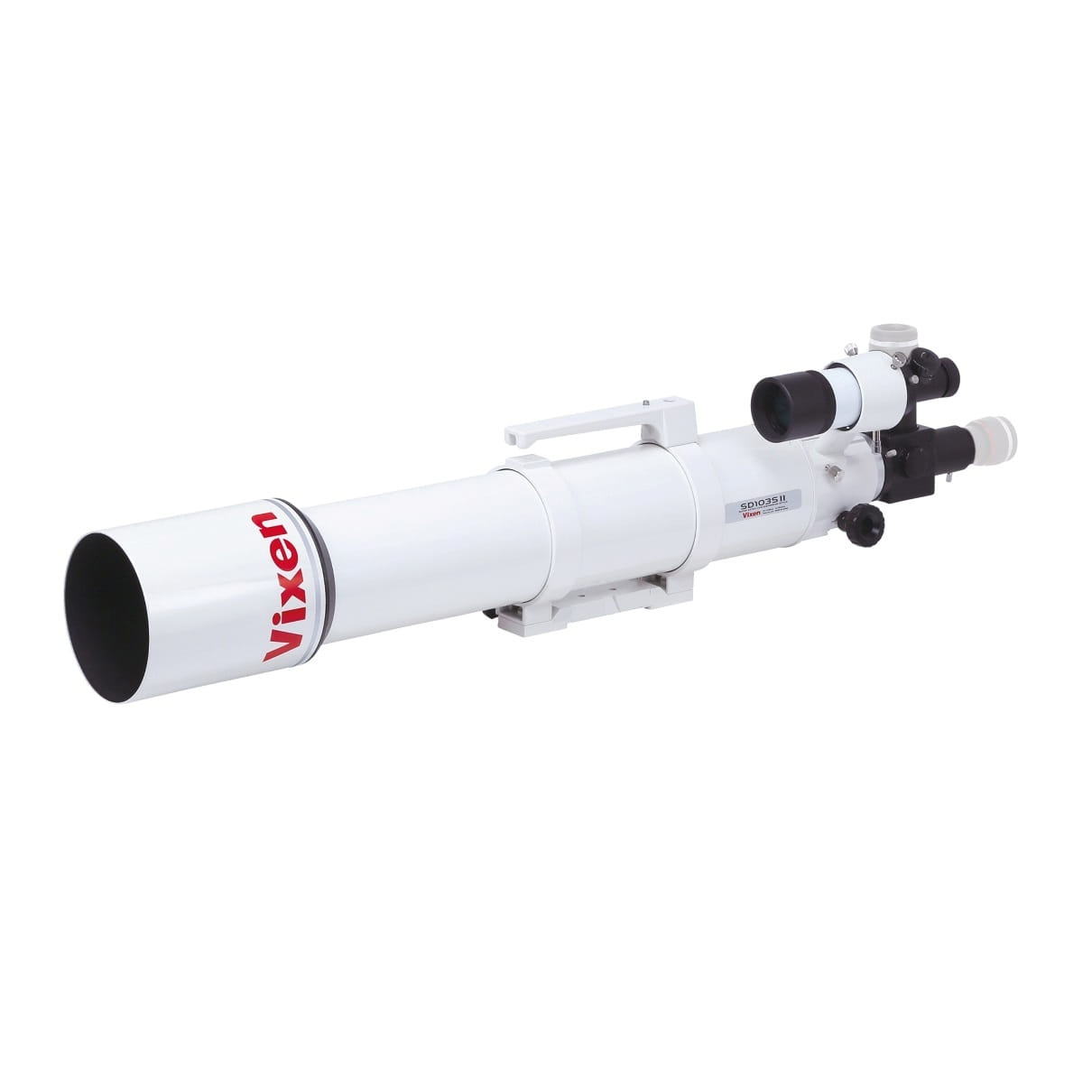

Vixen SD103SII Telescope OTA

Product Description

The Vixen SD103SII Telescope OTA is a new 103 mm apochromatic refractor with high-performance Super-ED glass with special dispersion characteristics The advantage of this SD refractor is its short length and low weight.

The FPL53 glass reproduces an extremely clear and sharp image by an exceptionally high degree of elimination of residual chromatic aberrations. The SD glass is designed to bring all beams of violet, red, blue, yellow and green very precisely together on the same plane. The special lens material reduces chromatic aberration across all colours.

The new Vixen SD103SII no longer uses spacer plates, which leads to a significantly better image quality, especially with bright stars. In photographic images, no spikes can be seen on the stars, which were otherwise produced by the spacer plates. In addition, you will be thrilled when you look at the moon or the brighter planets and observe the moon craters pin sharp as well as with extremely high contrast. Also look at the ring planet Saturn or the cloud bands on Jupiter. But of course, brighter deep sky objects such as the Orion Nebula or the Andromeda Galaxy can also be observed in impressive detail.

The SD series is also optimised for use with full-frame cameras through the use of new inner baffle rings. The large 60 mm eyepiece extension also allows heavy cameras to be attached without tilting. Furthermore, the included folding mirror allows comfortable observation even in unfavourable observation situations and additionally offers a T2 thread for connecting a DSLR camera. This allows you to observe in straight line or at a 90° angle. The carrying handle attached to the tube clamps ensures a secure grip when transporting the telescope.

Features
Objective lens: D=103 mm, multi-coated
2-lens SD apochromat without spacer plates
No more spikes on the stars
Focal length: 795 mm (f7.7)
Resolution and limiting magnitude: 1.13 arcseconds; 11.8
Light gathering power: approx. 217x more than the human eye
Dimensions and weight: 115 mm dia x 810 mm; 5.5 kg
Viewfinder telescope: 7x50 illuminated
Adapters and connections: 60 mm thread, 50.8 mm and 31.7 mm socket, thread for T-ring
Connection: 50.8 mm and 31.7 mm socket with flip mirror / folding mirror
Photography: primary focus and eyepiece projection

Included
Refractor SD103SII Telescope (OTA)
Tube clamp with dovetail
Dew cap
Flip mirror / folding mirror
Carrying handle
Dovetail rail
7x50 viewfinder

Specifications
Optical design Apochomatic Refractor
Maximum recommended magnification 206
ED glass
Mirror/Lens diam. 103 mm
Focal length 795 mm
Aperture ratio 7.7
Angular resolution 1.13 arc seconds
Visual limiting magnitude (approx., mag) 11.8
Type of coating
Fully multi-coated
Fully coated
Colour of coating green
Finderscope 7 x 50 mm
Material OTA Aluminium
Colour white
Type of tripod thread 60 mm
Transportability good
Eyepiece Barrel Diameter 50.8 mm
Dust protection caps Dust protection caps for front lens and eyepiece holder
Total length 810 mm
Total width 115 mm
Total height 115 mm
Net weight OTA (incl. accessories)
