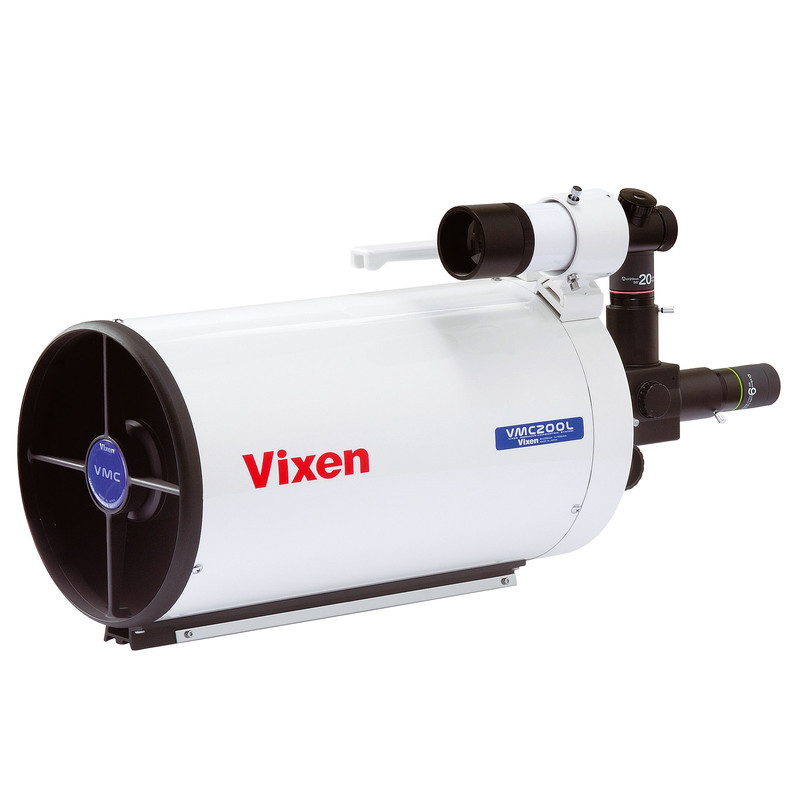

Vixen VMC200L Optical Tube Assembly

Product Description

The Vixen VMC200L is a telescope that will take amazing astrophotographs and also deliver great visual images. The Vixen VMC200L Reflector Telescope is a unique 200mm 8 inch catadioptric optical system. It incorporates a primary mirror and a meniscus corrector just before a secondary mirror. By doing so, light is corrected twice on the optical path. The end result is that spherical aberration and field curvature are corrected to a high degree of optical performance. 5 Year Warranty.

The VMC200L's primary mirror is f/2.5; the compound optical system is f/9.75. This makes the system much more compact and portable than its competition. With the optical correction placed before the secondary mirror, the VMC200L avoids the necessity of having a corrector plate and all the dewing problems associated with a closed optical tube. An additional key feature is the rack and pinion focusing that is placed behind the primary mirror. The use of this focusing system eliminates the image shift associated with most other SCT systems. This is especially important when using high power magnification or during astro-photography. When focusing, the image is stable and easy to adjust.

Delivery Time
Delivery is normally 5-7 business days with this product direct from the supplier via tracked courier

Specifications
Optical Design: Modified Catadioptric Reflector
Aperture: 200mm
Focal Length: 1950mm
Focal Ratio: f/9.75
Coating: Multi Coating
Resolving Power: .58 arc sec
Limiting Magnitude: 13.3
Light Gathering Power: 816x
Adapter Thread: 60mm/50.8mm
Astrophotography: Prime Focus, Eyepiece Projection & Afocal Imaging
Visual Back: Compression Ring
Optical Tube Length: 20" (510mm)
Optical Tube Diameter: 9.1" (232mm)
Optical Tube Weight: 13 lb
Dove Tail Mounting Rail; Carry Handle
Flip Mirror; 7x50 Finder Scope

Please note - eyepieces not included
